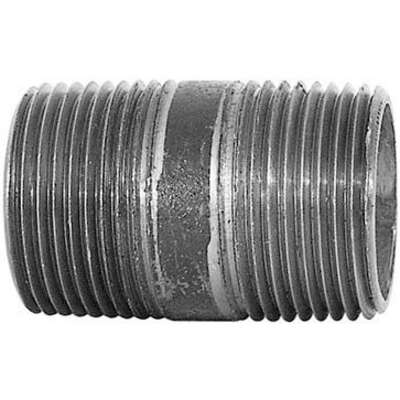

Black Welded Malleable Iron Pipe Nipple, Schedule 40, 1-1/4 in. X 3 in.
Technical Specifications
Key Specifications
Body Material
Black Welded Steel
Brand
APPROVED SUPPLIER
Class
150 lb.
Connection Type
MNPT x MNPT
Fitting Connection (A) Gender
Male
Fitting Connection (A) Pipe Size
1-1/4 in.
Fitting Connection (A) Pipe Thread Size
1-1/4"-11-1/2
Fitting Connection (A) Style
NPT Pipe
Fitting Connection (B) Pipe Size
1-1/4 in.
Fitting Connection (B) Pipe Thread Size
1-1/4"-11-1/2
Fitting Connection (B) Style
NPT Pipe
Fitting Material
Malleable Iron
Fitting Style
Nipple
Grade
32510
Item
Nipple
Length
3
Maximum Pressure
300 psi @ 150°F
Mfr. Part Number
5P703
Outside Diameter
1-21/32 in.
Package Quantity
5
Pipe Size
1-1/4 in.
Plating
None
Shipping Weight
2.36 lb.
System of Measurement
Fractional
Thread Type
NPT
Vibration Resistance
Good
Wall Thickness
1/8 in.
Working Pressure
300 psi Cold water, Oil, Gas 150 Steam Pressure
Body Material
Black Welded Steel
Item
Nipple
Brand
APPROVED SUPPLIER
Length
3
Class
150 lb.
Maximum Pressure
300 psi @ 150°F
Connection Type
MNPT x MNPT
Mfr. Part Number
5P703
Fitting Connection (A) Gender
Male
Outside Diameter
1-21/32 in.
Fitting Connection (A) Pipe Size
1-1/4 in.
Package Quantity
5
Fitting Connection (A) Pipe Thread Size
1-1/4"-11-1/2
Pipe Size
1-1/4 in.
Fitting Connection (A) Style
NPT Pipe
Plating
None
Fitting Connection (B) Pipe Size
1-1/4 in.
Shipping Weight
2.36 lb.
Fitting Connection (B) Pipe Thread Size
1-1/4"-11-1/2
System of Measurement
Fractional
Fitting Connection (B) Style
NPT Pipe
Thread Type
NPT
Fitting Material
Malleable Iron
Vibration Resistance
Good
Fitting Style
Nipple
Wall Thickness
1/8 in.
Grade
32510
Working Pressure
300 psi Cold water, Oil, Gas 150 Steam Pressure
General
Dimension Standard
ASTM A733
Material Standards
ASTM A53/A53M
Maximum Steam Pressure
150 PSI@ 350°F
Metal Detectable
Yes
Saturated Steam Pressure
150 psi
Schedule
40
Standards
ASTM A-53 Type E, Grade B, ASTM A-733, WWN 351
Thread Standard
ASME B1.20.1
Dimension Standard
ASTM A733
Saturated Steam Pressure
150 psi
Material Standards
ASTM A53/A53M
Schedule
40
Maximum Steam Pressure
150 PSI@ 350°F
Standards
ASTM A-53 Type E, Grade B, ASTM A-733, WWN 351
Metal Detectable
Yes
Thread Standard
ASME B1.20.1
Product Description
- Typical Applications: Gasoline, instrumentation, power steering, air brake, pneumatic, gas lines.
- It is recommended to always use thread sealant or tape on tapered pipe threads.
- Tapered pipe thread seal on wedging contact between threads. The more you tighten the tighter the seals.
- Pipe threads are the most common fitting style used in the United States and Canada.
- The difference between NPT and NPTF is the root and crest tolerances.
- Cross References: Matco-Norca NB063, Grainger 5P703, MSI A27700203.0
