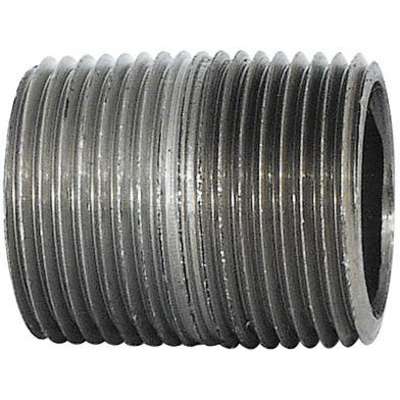

Black Welded Malleable Iron Close Pipe Nipple, Schedule 40, 3/4 in.
Technical Specifications
Key Specifications
Body Material
Black Welded Steel
Brand
APPROVED SUPPLIER
Class
150 lb.
Connection Type
MNPT x MNPT
Grade
32510
Item
Close Pipe Nipple
Maximum Pressure
300 psi @ 150°F
Mfr. Part Number
5P667
Outside Diameter
1-3/64 in.
Package Quantity
10
Pipe Size
3/4 in.
Shipping Weight
1.2 lb.
Thread Type
NPT
Wall Thickness
7/64 in.
Working Pressure
300 psi Cold water, Oil, Gas 150 Steam Pressure
Body Material
Black Welded Steel
Outside Diameter
1-3/64 in.
Brand
APPROVED SUPPLIER
Package Quantity
10
Class
150 lb.
Pipe Size
3/4 in.
Connection Type
MNPT x MNPT
Shipping Weight
1.2 lb.
Grade
32510
Thread Type
NPT
Item
Close Pipe Nipple
Wall Thickness
7/64 in.
Maximum Pressure
300 psi @ 150°F
Working Pressure
300 psi Cold water, Oil, Gas 150 Steam Pressure
Mfr. Part Number
5P667
General
Dimension Standard
ASTM A733
Fitting Connection (A) Gender
Male
Fitting Connection (A) Pipe Size
3/4 in.
Fitting Connection (A) Pipe Thread Size
3/4"-14
Fitting Connection (A) Style
NPT Pipe
Fitting Connection (B) Gender
Male
Fitting Connection (B) Pipe Size
3/4 in.
Fitting Connection (B) Pipe Thread Size
3/4"-14
Fitting Connection (B) Style
NPT Pipe
Fitting Material
Malleable Iron
Fitting Style
Nipple
Material Standards
ASTM A53/A53M
Maximum Steam Pressure
150 PSI@ 350°F
Metal Detectable
Yes
Plating
None
Saturated Steam Pressure
150 psi
Schedule
40
Standards
ASTM A-53 Type E, Grade B, ASTM A-733, WWN 351
System of Measurement
Fractional
Thread Standard
ASME B1.20.1
Vibration Resistance
Good
Dimension Standard
ASTM A733
Material Standards
ASTM A53/A53M
Fitting Connection (A) Gender
Male
Maximum Steam Pressure
150 PSI@ 350°F
Fitting Connection (A) Pipe Size
3/4 in.
Metal Detectable
Yes
Fitting Connection (A) Pipe Thread Size
3/4"-14
Plating
None
Fitting Connection (A) Style
NPT Pipe
Saturated Steam Pressure
150 psi
Fitting Connection (B) Gender
Male
Schedule
40
Fitting Connection (B) Pipe Size
3/4 in.
Standards
ASTM A-53 Type E, Grade B, ASTM A-733, WWN 351
Fitting Connection (B) Pipe Thread Size
3/4"-14
System of Measurement
Fractional
Fitting Connection (B) Style
NPT Pipe
Thread Standard
ASME B1.20.1
Fitting Material
Malleable Iron
Vibration Resistance
Good
Fitting Style
Nipple
Product Description
- Typical Applications: Gasoline, instrumentation, power steering, air brake, pneumatic, gas lines.
- It is recommended to always use thread sealant or tape on tapered pipe threads.
- Tapered pipe thread seal on wedging contact between threads. The more you tighten the tighter the seals.
- Pipe threads are the most common fitting style used in the United States and Canada.
- The difference between NPT and NPTF is the root and crest tolerances.
- Cross References: Matco-Norca NB04CL, Grainger 5P667, MSI A2770012CL
