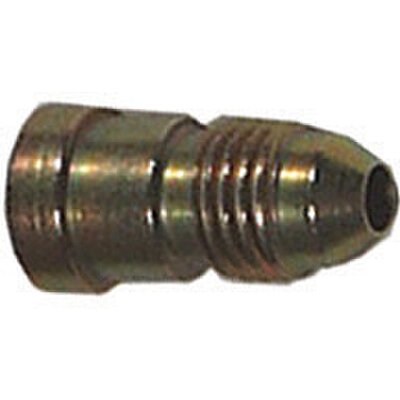

Steel JIC Reducer 3/4F-1/2M

Steel JIC Reducer 3/4F-1/2M

#97285 | Pkg Qty: 5
Item Number 97285
Scanner Description Steel Jic Reducer 3/4F-1/2M
Weight 0.52 lb
Brand APPROVED SUPPLIER
Catalog F18

Technical Specifications

Brand
APPROVED SUPPLIER
System of Measurement
Fractional
Fitting Style
JIC
Thread Style - Fittings
SAE
Item
Flare Fitting
Tube Flare
37 deg.
Material
Steel
Vibration Resistance
Good
Pack Quantity
5
Working Pressure (PSI)
Up to 10,000 psi
Shape
Reducer

Product Description

  • Working pressure up to 10,000 psi, depending on tube and fitting size.
  • Used with copper, brass, steel, aluminum, and other tubing that can be flared.
  • Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment.
  • Meets or exceeds ASA, ASME, SAE, and MS specifications.
  • Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required.
  • Female Reduction: 3/4"
  • Male Reduction: 1/2"
  • Cross Reference: C5015 x 12 x 8
  • Assembly Instructions:
    1. Slide nut on tubing. Threaded end of nut must face out.
    2. Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out.
    3. Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off.
    4. Assemble tubing to fitting body. Tube nut should be turned hand tight.
    5. Tighten assembly with a wrench.
SAE 37° (JIC) Steel Fitting IllustrationSAE 37° (JIC) Steel Fitting Illustration
