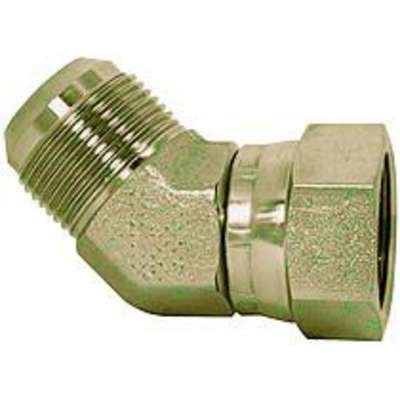

JIC 45° Swivel Nut Elbow with JIC Fitting Connection Type and 6000 psi Max. Pressure, 3/8" x 3/8"
Sae 37° (Jic) Steel Swivel Nut 45° Elbow Fitting
- Working Pressure Up To 10,000 Psi, Depending On Tube And Fitting Size.
- Used With Copper, Brass, Steel, Aluminum, And Other Tubing That Can Be Flared.
- Applications Include Medium And High Pressure Lines On Heavy Construction, Agricultural, And Transportation Equipment.
- Meets Or Exceeds Asa, Asme, Sae, And Ms Specifications.
- Good Resistance To Vibration. Use Two Or Three Piece Nut Design Where Greater Vibration Resistance Is Required.
- Tube Outside Diameter: 3/8
- Thread Size: 9/16-18
- Cross Reference: C5356 X 6
- Assembly Instructions:
- Slide Nut On Tubing. Threaded End Of Nut Must Face Out.
- Slide Sleeve On Tubing (3-Piece Assembly). Collar End Of Sleeve Must Face Out.
- Flare Tubing And Check Flare Diameter. Examine For Excessive Thin-Out. On Thin Wall Tubing, Use Double Flare To Prevent Pinch-Off.
- Assemble Tubing To Fitting Body. Tube Nut Should Be Turned Hand Tight.
- Tighten Assembly With A Wrench. 2-Piece Nut Assembly 3-Piece Nut Assembly
|WEATHERHEAD||C5356X6||STEEL FIT 37 C5356X6|
|UNSPSC CODES||40183101||STEEL FIT 37 C5356X6|
|VMRS (ATA) CODES||053-008-004||STEEL FIT 37 C5356X6|
