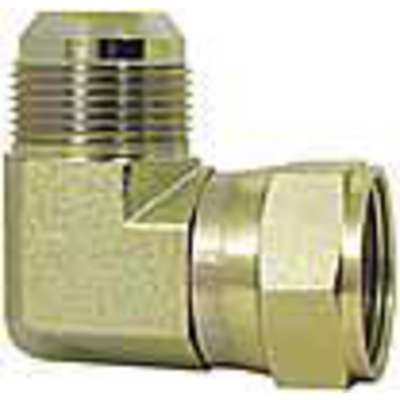

JIC 90° Swivel Nut Elbow with JIC Fitting Connection Type and 6000 psi Max. Pressure, 1/2"

JIC 90° Swivel Nut Elbow with JIC Fitting Connection Type and 6000 psi Max. Pressure, 1/2"

#97217 | Pkg Qty: 2

Package Quantity
2 100
Item Number 97217
Scanner Description Jic 90'SW.Nut Elb 1/2"
Inventory Status In Stock
Weight 0.43 lb
Brand APPROVED SUPPLIER
Catalog F20

Technical Specifications

Angle
90 deg.
Material
Carbon Steel
Basic Fitting Material
Metal
Material of Construction
Carbon Steel
Basic Fitting Shape
Elbow
Pack Quantity
2
Body Material
Carbon Steel
Shape
Swivel Nut Elbow 90
Brand
APPROVED SUPPLIER
System of Measurement
Fractional
DOT Approved
No
Temperature Range (Deg. F)
-65 to +400 deg. F
Finish
Trivalent Zinc Plated
Thread Size
3/4"-16
Fitting Style
MJIC X FJIC
Tube Flare
37 deg.
Fitting Thread Style
SAE
Tube Outside Diameter
3/4
Grade
1045
Vibration Resistance
Good
Heat Treated
No
Working Pressure (PSI)
4000
Item
Y-6500-F-08-08

Product Description

Sae 37° (Jic) Steel Swivel Nut 90° Elbow Fitting

  • Working Pressure Up To 10,000 Psi, Depending On Tube And Fitting Size.
  • Used With Copper, Brass, Steel, Aluminum, And Other Tubing That Can Be Flared.
  • Applications Include Medium And High Pressure Lines On Heavy Construction, Agricultural, And Transportation Equipment.
  • Meets Or Exceeds Asa, Asme, Sae, And Ms Specifications.
  • Good Resistance To Vibration. Use Two Or Three Piece Nut Design Where Greater Vibration Resistance Is Required.
  • Tube Outside Diameter: 1/2
  • Thread Size: 3/4-16
  • Cross Reference: Tf5506 X 8
  • Assembly Instructions:
  • Slide Nut On Tubing. Threaded End Of Nut Must Face Out.
  • Slide Sleeve On Tubing (3-Piece Assembly). Collar End Of Sleeve Must Face Out.
  • Flare Tubing And Check Flare Diameter. Examine For Excessive Thin-Out. On Thin Wall Tubing, Use Double Flare To Prevent Pinch-Off.
  • Assemble Tubing To Fitting Body. Tube Nut Should Be Turned Hand Tight.
  • Tighten Assembly With A Wrench. 2-Piece Nut Assembly 3-Piece Nut Assembly
Item Barcode
0972170
  Name Item Description
WEATHERHEAD WEATHERHEAD C5506X8 STEEL FIT 37TF5506X8
WEATHERHEAD WEATHERHEAD TF5506X8 STEEL FIT 37 TF5506X8
UNSPSC CODES UNSPSC CODES 40183101 STEEL FIT 37 TF5506X8
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 STEEL FIT 37 TF5506X8
