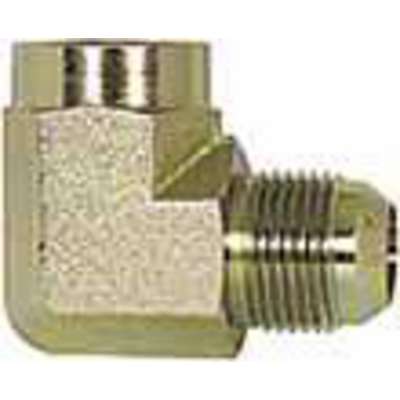

JIC 90° Female Elbow, Carbon Steel, 3/8" x 1/4"

JIC 90° Female Elbow, Carbon Steel, 3/8" x 1/4"

#96477 | Pkg Qty: 5

Item Number 96477
Scanner Description Jic 90' Elb 3/8X1/4 Female
Inventory Status In Stock
Weight 0.8 lb
Brand APPROVED SUPPLIER
Catalog F20

Technical Specifications

Angle
90 deg.
Pack Quantity
5
Brand
APPROVED SUPPLIER
Pipe Thread
1/4-18
Connection Type
Female
Shape
90 Degree
DOT Approved
No
System of Measurement
Fractional
Finish
Trivalent Zinc Plated
Temperature Range (Deg F)
-65 to +400 deg. F
Fitting Style
Adapter 90°
Thread Size
9/16"-18
Fitting Thread Style
SAE
Tube Flare
37 deg.
Fitting Type
MJIC X FP 90°
Tube Outside Dia.
.56
Grade
1040
Vibration Resistance
Good
Heat Treated
No
Working Pressure (PSI)
4000
Material
Carbon Steel

Product Description

Sae 37° (Jic) Steel 90° Female Elbow Fitting

  • Working Pressure Up To 10,000 Psi, Depending On Tube And Fitting Size.
  • Used With Copper, Brass, Steel, Aluminum, And Other Tubing That Can Be Flared.
  • Applications Include Medium And High Pressure Lines On Heavy Construction, Agricultural, And Transportation Equipment.
  • Meets Or Exceeds Asa, Asme, Sae, And Ms Specifications.
  • Good Resistance To Vibration. Use Two Or Three Piece Nut Design Where Greater Vibration Resistance Is Required.
  • Tube Outside Diameter: 3/8
  • Thread Size: 9/16-18
  • Pipe Thread: 1/4
  • Cross Reference: C5455 X 6
  • Assembly Instructions:
  • Slide Nut On Tubing. Threaded End Of Nut Must Face Out.
  • Slide Sleeve On Tubing (3-Piece Assembly). Collar End Of Sleeve Must Face Out.
  • Flare Tubing And Check Flare Diameter. Examine For Excessive Thin-Out. On Thin Wall Tubing, Use Double Flare To Prevent Pinch-Off.
  • Assemble Tubing To Fitting Body. Tube Nut Should Be Turned Hand Tight.
  • Tighten Assembly With A Wrench. 2-Piece Nut Assembly 3-Piece Nut Assembly
Item Barcode
0964770
  Name Item Description
WEATHERHEAD WEATHERHEAD c5455x6 STEEL FIT 37C5455X6 FM
UNSPSC CODES UNSPSC CODES 40183101 STEEL FIT 37 C5455X6 FM
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 STEEL FIT 37 C5455X6 FM
