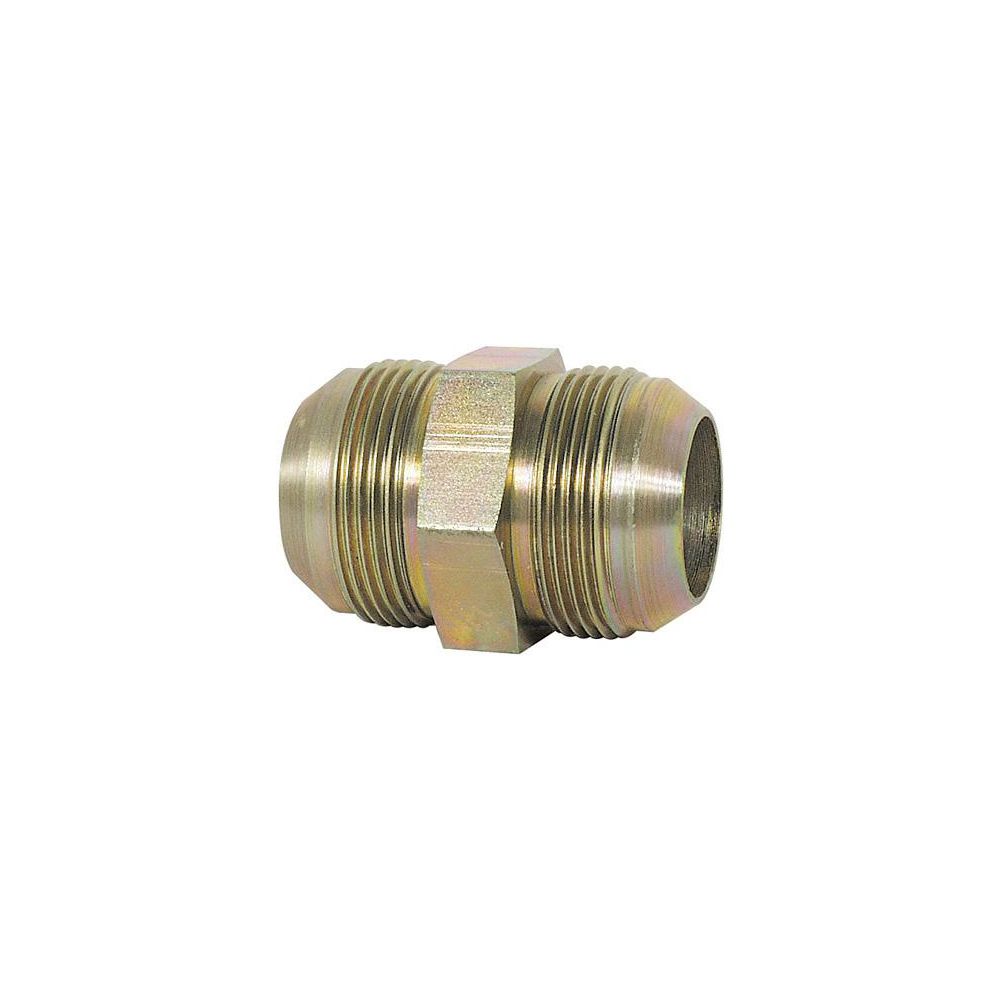

37 deg. Male JIC to Male JIC Straight, Carbon Steel, .31 x 5/16"-24

Hover over image to magnify
Jic Union 1/8
Jic Union 1/8

#96350 | Pkg Qty: 5

In Stock

Shipping to 60045
Catalog: F19

Technical Specifications

Brand
APPROVED SUPPLIER
Mfr. Part Number
963500
DOT Approved
No
Package Quantity
5
Finish
Trivalent Zinc Plated
Shape
Straight
Fitting Style
Male JIC to Male JIC
Shipping Weight
0.16 lb.
Fitting Thread Size
5/16"-24
System of Measurement
Fractional
Fitting Type
MJIC Union
Temperature Range (Deg. F)
-65 to +400 deg. F
Grade
1045
Tube Flare
37 deg.
Heat Treated
No
Tube Outside Diameter
.31
Item
Flare Fitting
Vibration Resistance
Good
Material
Carbon Steel
Working Pressure
5000

Product Description

Sae 37° (Jic) Steel Standard Hex Union Fitting
  • Working Pressure Up To 10,000 Psi, Depending On Tube And Fitting Size.
  • Used With Copper, Brass, Steel, Aluminum, And Other Tubing That Can Be Flared.
  • Applications Include Medium And High Pressure Lines On Heavy Construction, Agricultural, And Transportation Equipment.
  • Meets Or Exceeds Asa, Asme, Sae, And Ms Specifications.
  • Good Resistance To Vibration. Use Two Or Three Piece Nut Design Where Greater Vibration Resistance Is Required.
  • Tube Outside Diameter: 1/8
  • Thread Size: 5/16-24
  • Cross Reference: C5305 X 2
  • Assembly Instructions:
  • Slide Nut On Tubing. Threaded End Of Nut Must Face Out.
  • Slide Sleeve On Tubing (3-Piece Assembly). Collar End Of Sleeve Must Face Out.
  • Flare Tubing And Check Flare Diameter. Examine For Excessive Thin-Out. On Thin Wall Tubing, Use Double Flare To Prevent Pinch-Off.
  • Assemble Tubing To Fitting Body. Tube Nut Should Be Turned Hand Tight.
  • Tighten Assembly With A Wrench. 2-Piece Nut Assembly 3-Piece Nut Assembly
Item Barcode
0963500
Jic Union 1/8
 NameItemDescription
WEATHERHEADWEATHERHEADA3905STEEL FIT 37 C5305X2
WEATHERHEADWEATHERHEADC5305X2STEEL FIT 37 C5305X2
UNSPSC CODESUNSPSC CODES40183101STEEL FIT 37 C5305X2
VMRS (ATA) CODESVMRS (ATA) CODES053-008-004STEEL FIT 37 C5305X2
