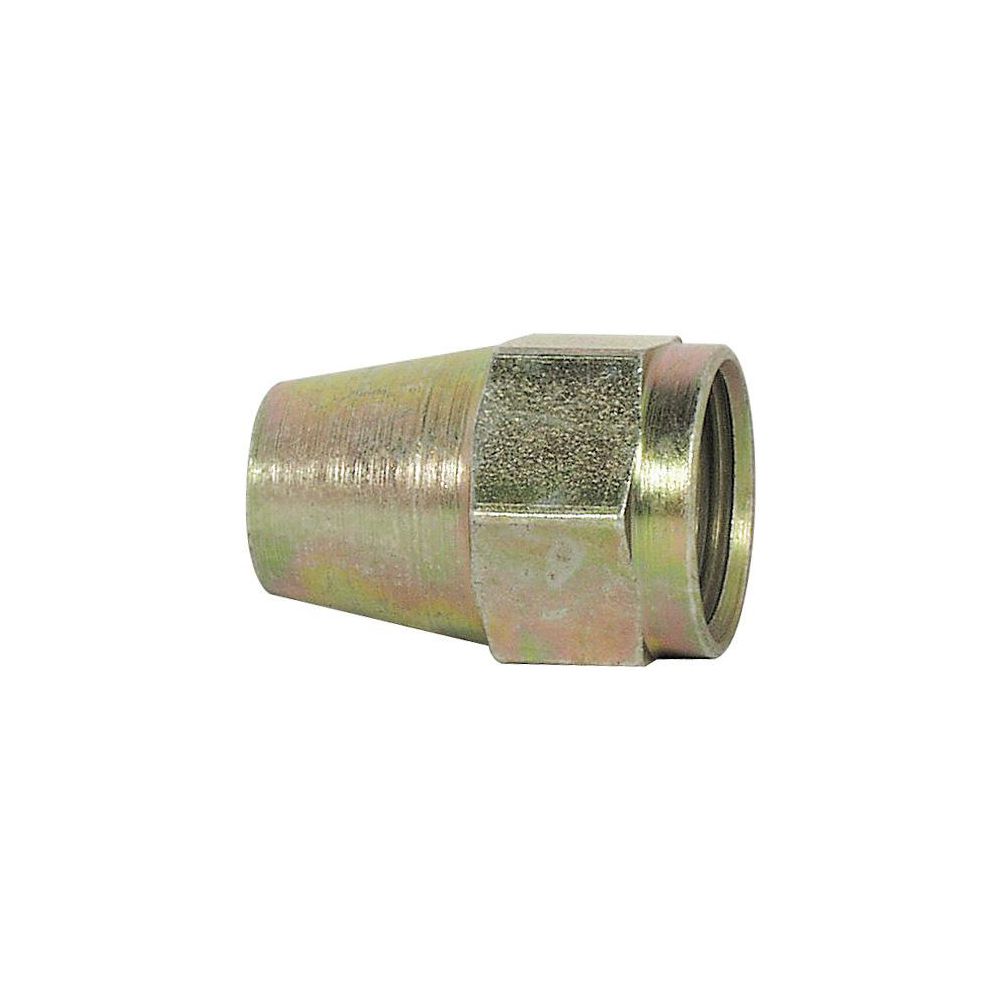

2PC Jic Nut 1/2

2PC JIC Nut 1/2

Item Number 96233
Scanner Description 2PC Jic Nut 1/2
Weight 0.39 lb
Brand APPROVED SUPPLIER
Catalog F18
Pkg Qty: 5

Add to List

Technical Specifications

Brand APPROVED SUPPLIER   Material Carbon Steel - AISI/SAE 12L17
DOT Approved No   System of Measurement Fractional
Finish Trivalent Zinc Plated   Temperature Range (Deg F) -65 to +400 deg. F
Fitting Style JIC   Thread Size 3/4"-16
Fitting Type Flare Fitting   Tube Flare 37 deg.
Grade 12L14   Tube Outside Diameter 1/2 in.
Heat Treated No   Vibration Resistance Good
Item 5 Piece Nut   Working Pressure Up to 6,000 psi

Product Description

  • Working pressure up to 10,000 psi, depending on tube and fitting size.
  • Used with copper, brass, steel, aluminum, and other tubing that can be flared.
  • Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment.
  • Meets or exceeds ASA, ASME, SAE, and MS specifications.
  • Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required.
  • Tube Outside Diameter: 1/2
  • Thread Size:3/4 –16
  • Cross Reference: C5115 x 8
  • Assembly Instructions:
    1. Slide nut on tubing. Threaded end of nut must face out.
    2. Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out.
    3. Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off.
    4. Assemble tubing to fitting body. Tube nut should be turned hand tight.
    5. Tighten assembly with a wrench.
SAE 37° (JIC) Steel Fitting IllustrationSAE 37° (JIC) Steel Fitting Illustration

Item Barcode

0962330
399-1 Jic 37 Steel Fittings
  Name Item Description
WEATHERHEAD WEATHERHEAD C5115X8 STEEL FIT 37 C5115X8
UNSPSC CODES UNSPSC CODES 40183101 STEEL FIT 37 C5115X8
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 STEEL FIT 37 C5115X8
