DANFOSS

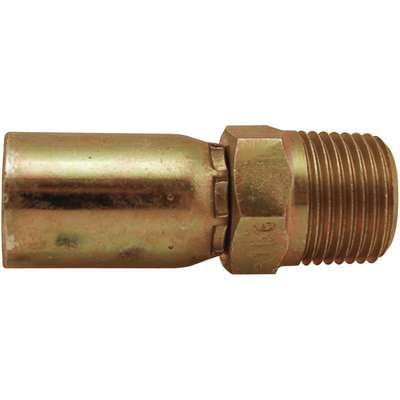

Coll-O-Crimp E-Series Male Pipe Rigid, Low Carbon Steel, 3/16"

Hover over image to magnify
Crimp "E" Ml 3/16X1/4
Crimp "E" Ml 3/16X1/4

#93642 | Pkg Qty: 1

In Stock

Shipping to 60045

Technical Specifications

Brand
DANFOSS
Mfr. Part Number
03E-104
Connection Type
Male
Package Quantity
1
Finish
Zinc; Clear Trivalent Chromate
Series
Coll-O-Crimp E-Series
Fitting Style
Rigid
Shape
Pipe
For Pipe Size
1/4 in.
Shipping Weight
0.07 lb.
Hex Size
9/16 in.
System of Measurement
Fractional
Hose Cutoff Factor
1 in.
Thread Size
1/4"-18
Hose Inside Diameter
3/16 in.
Tube Size
1/4 in.
Item
Crimp Hose End
Working Pressure
Determined by maximum working pressure for hose size and hose end configuration whichever is lesser
Material
Low Carbon Steel

Product Description

  • Male Pipe Rigid Hose End.
  • For general purpose, low, and medium pressure hydraulics.
  • For use with (1) one braid hose.
  • Material: AISI/SAE 12L14 carbon steel
  • Plating: Zinc; yellow dichromate finish
  • Cross Reference: 03E-104
  • For use with H009, h209, h243, h265, h275, h285, H435, and H436 hose.
  • NOTE: Special E-Series collet is required for this hose end.
Item Barcode
0936420
Crimp "E" Ml 3/16X1/4
 NameItemDescription
WEATHERHEADWEATHERHEAD03E-104CRIMP END 03E-104
UNSPSC CODESUNSPSC CODES27121700
VMRS (ATA) CODESVMRS (ATA) CODES053-008-004CRIMP END 03E-104
