DANFOSS

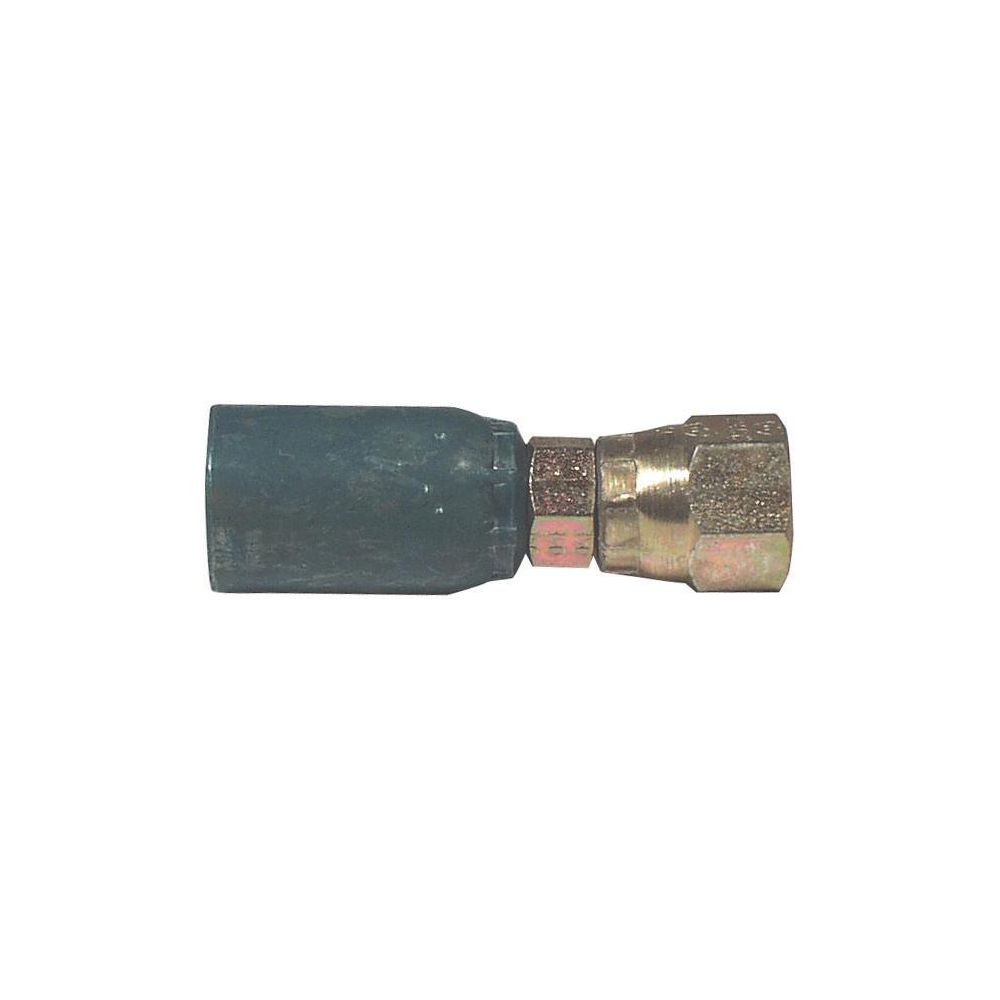

06906E-406 Hose End Medium

Hover over image to magnify
Crimp"E" Fm Sw 5/16X3/8
Crimp"E" Fm Sw 5/16X3/8

#92784 | Pkg Qty: 5

In Stock

Shipping to 60045
Catalog: H18

Technical Specifications

Brand
DANFOSS
Package Quantity
5
Connection Type
Female
Series
Coll-O-Crimp 069 E-Series
Finish
Zinc; Clear Trivalent Chromate
Shipping Weight
1 lb.
Fitting Style
Swivel
Swivel Nut Hex Size
3/4 in.
Hex Size
9/16 in.
System of Measurement
Fractional
Hose Cutoff Factor
1.13 in.
Thread Size
5/8"-18
Hose Inside Diameter
5/16 in.
Thread Type
SAE
Item
Crimp Hose End
Tube Flare
45 deg.
Material
Low Carbon Steel
Working Pressure
Determined by maximum working pressure for hose size and hose end configuration whichever is lesser
Mfr. Part Number
06906E-406

Product Description

H069 E-Series Hose End
  • H069 E-Series SAE 37° (Jic) Female Swivel Hose End.
  • For Use With (1) One Braid Hose.
  • For SAE 45° Flare Connections Only.
  • Material: Aisi/Sae 12L14 Carbon Steel
  • Plating: Zinc; Yellow , Collar: Zinc, Green
  • Hose Inside Diameter: 5/16
  • Pipe Size: 3/8
  • Thread Size: 5/8-18
  • Cross Reference: 06906E-406
  • For Use With H069 Medium High Pressure Hose Only.
  • Note: Special Collets Are Required To Crimp These Hose Ends. Collets Must Be Ordered Seperately.
Item Barcode
0927840
Crimp"E" Fm Sw 5/16X3/8
 NameItemDescription
WEATHERHEADWEATHERHEAD06906E-406HOSE END MED 06906E-406
UNSPSC CODESUNSPSC CODES40141700HOSE END MED 06906E-406
VMRS (ATA) CODESVMRS (ATA) CODES053-008-004HOSE END MED 06906E-406
