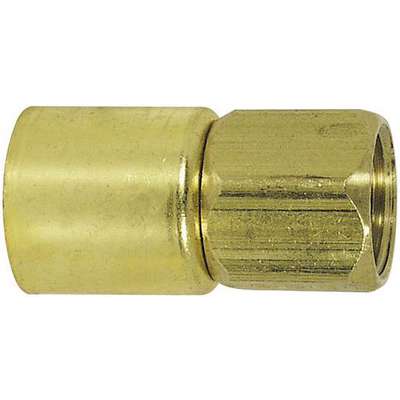

Eaton Weatherhead Coll-O-Crimp SAE 45° Female Swivel, Brass, 3/8" Hose I.D. x 5/8"-18 Thread Size, 3/4" Hex Size
Hover over image to magnify
Technical Specifications
Brand
EATON
Material
Brass
Connection Type
Female
Mfr. Part Number
33806P-406
Crimp Style Fittings (DOT) Type
SAE 45 Degree Female Swivels
Pack Quantity
5
Fitting Style
Swivel
Series
338 P
Fitting Thread Style
SAE
System of Measurement
Fractional
Grade
CA360
Thread Size
5/8"-18
Hex Size
3/4 in.
Trade Name
COLL-O-CRIMP
Hose Cutoff Factor
1 in.
Tube Flare
45 deg.
Hose Inside Diameter
3/8 in.
Tube Size
3/8 in.
Item
Crimp Hose End
Working Pressure
Determined by hose burst pressure.
Product Description
Rubber Air Brake 338 Series Crimp Hose Ends
- SAE 45° Female Swivel Hose End.
- Brass Material Offers Excellent Resistance Against Corrosion.
- Permanent Hose End, Saves Time And It's Easy To Assemble.
- Hose Inside Diameter: 3/8
- Tube Size: 3/8
- Thread Size: 5/8-18
- Cross Reference: 33806P-406
- For Use With Rubber Air Brake Hose.
- Note: Use Special Collet For Rubber Air Brake Hose, Part No. 3117 For This Hose End.
- Assembly Instructions:
- Push Collar Onto Hose Until Bottomed.
- Push Insert Into Hose Until Step On Insert (Or Hex) Is Flush With Collar. Note: Swivel Fittings Require The Use Of A Mandrel Or An Assembled Adapter To Push On The Insert For Assembly. Adapter Can Be Removed After Fitting Assembly. Light Lubricant May Be Required To Assemble Fitting Into Hose.
- Check For Bottoming By Checking Collar Movement Along Insert. Hose Is Bottomed When Collar Cannot Slide Along Insert.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Crimp"338"45°Fm.Swvl.3/8
| Name | Item | Description | |
|---|---|---|---|
|
WEATHERHEAD | 33806P-406 | CRIMP END 33806P-406 |
|
|
WEATHERHEAD | 38806P-406 | CRIMP END 33806P-406 |
|
UNSPSC CODES | 27121700 | CRIMP END 33806P-406 |
|
VMRS (ATA) CODES | 053-008-004 | CRIMP END 33806P-406 |
