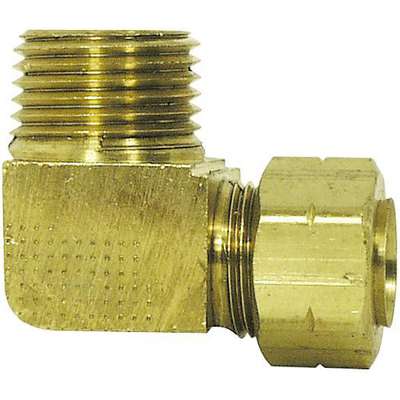

PMAlign Male Elbow 3/8" x 1/8"

Item Number 91151
Scanner Description Pmalign Ml Elb 3/8X1/8
Weight 0.9 lb
Brand APPROVED SUPPLIER
Catalog F28
California Proposition 65 Icon
Pkg Qty: 10

Add to List

Technical Specifications

Angle 90 deg.   Pipe Thread 1/8 in.
Body Material Brass   Shape Elbow
Brand APPROVED SUPPLIER   System of Measurement Fractional
Connection Type Male   Temperature Range (Deg F) -65 to +250 deg. F
DOT Approved No   Thread Size 9/16"-24
Fitting Type Compression Fitting   Tube Outside Dia. 3/8 in.
Item Compression Fitting with Captured Sleeve   Working Pressure 1000 psi
Pack Quantity 10

Product Description

  • Reduce your labor costs! Installation time is cut by 40% over standard compression fittings, and 70% over SAE 45° flare fittings.
  • Use them on copper, aluminum, and thermoplastic tubing.
  • Fittings eliminate "sleeve cocking" and leakage, creating a more reliable connection.
  • The pressure rating is five to six times that of most standard compression fittings.
  • They cover more than 70% of all fitting requirements (maximum working pressure = 3,000 psi).
  • Tube Outside Diameter: 3/8
  • Pipe Thread: 1/8
  • Cross Reference: 969A-6A
Permalign Fitting Illustration
Easy To Install
Compliance & Restrictions
Prop 65 WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
0911510
  Name Item Description
WEATHERHEAD WEATHERHEAD 969A-6A PMALIGN M EL 3/8 X 1/8
UNSPSC CODES UNSPSC CODES 40173301 PMALIGN M EL 3/8 X 1/8
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-004 PMALIGN M EL 3/8 X 1/8
