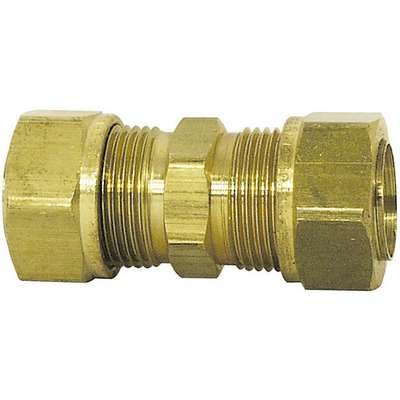

Captured Sleeve Compression Union 1/4 in. x 1/4 in.
Technical Specifications
Key Specifications
Body Material
Brass
Brand
APPROVED SUPPLIER
Cap Hex Size
1/2 in.
Cap Inlet Inside Diameter
0.255 in.
DOT Approved
No
Fitting Connection (A) Gender
Female
Fitting Connection (A) Style
Captured Sleeve Compression
Fitting Connection (A) Tube Size
1/4 in.
Fitting Connection (B) Gender
Female
Fitting Connection (B) Style
Captured Sleeve Compression
Fitting Connection (B) Thread Size
7/16"-24
Fitting Connection (B) Tube Size
1/4 in.
Fitting Material
Brass
Fitting Style
Union
Item
Compression Fitting Union With Captive Sleeve
Mfr. Part Number
91110
Package Quantity
10
Shape
Union
Shipping Weight
0.5 lb.
System of Measurement
Fractional
Temperature Range (Deg. F)
-65 to +250 deg. F
Tube Outside Diameter
1/4 in.
Working Pressure
1400 psi
Body Material
Brass
Fitting Material
Brass
Brand
APPROVED SUPPLIER
Fitting Style
Union
Cap Hex Size
1/2 in.
Item
Compression Fitting Union With Captive Sleeve
Cap Inlet Inside Diameter
0.255 in.
Mfr. Part Number
91110
DOT Approved
No
Package Quantity
10
Fitting Connection (A) Gender
Female
Shape
Union
Fitting Connection (A) Style
Captured Sleeve Compression
Shipping Weight
0.5 lb.
Fitting Connection (A) Tube Size
1/4 in.
System of Measurement
Fractional
Fitting Connection (B) Gender
Female
Temperature Range (Deg. F)
-65 to +250 deg. F
Fitting Connection (B) Style
Captured Sleeve Compression
Tube Outside Diameter
1/4 in.
Fitting Connection (B) Thread Size
7/16"-24
Working Pressure
1400 psi
Fitting Connection (B) Tube Size
1/4 in.
General
Vibration Resistance
Good
Vibration Resistance
Good
Product Description
- Typical Applications - Pneumatic, lubrication, transmission, and packaging.
- Used with water, compressed air, oils, and disinfectants.
- No flaring of tubing required.
- Fitting eliminates “Sleeve Cocking” and leakage, creating a more reliable connection.
