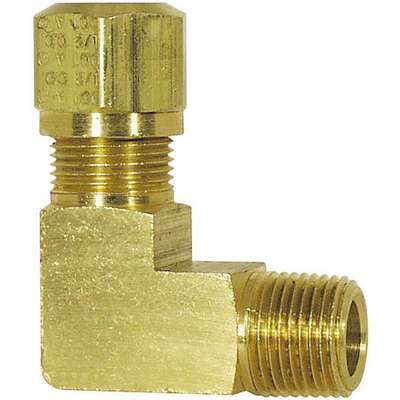

90° Long Male Elbow, Compression Air Brake Fitting For Nylon Tubing, Brass, 1/2" x 3/8"

Hover over image to magnify
A/B 90' Male Elb 1/2 X 3/8 Lg
A/B 90' Male Elb 1/2 X 3/8 Lg

#90702 | Pkg Qty: 10

In Stock

Shipping to 60045
Catalog: G4

Technical Specifications

Angle
90 deg.
Mfr. Part Number
907020
Brand
APPROVED SUPPLIER
Pack Quantity
10
Connection Type
Long Male
Pipe Thread
3/8 in.
Connector Type
Female Connector
Shape
Elbow
DOT Approved
Yes
Shipping Weight
3.4 lb.
DOT Compression Fittings Type
Elbows
System of Measurement
Fractional
Fitting Style
Compression Fitting
Temperature Range (Deg. F)
-40 to +200 deg. F
Fitting Type
Compression Air Brake Fitting For Nylon Tubing
Thread Size
11/16"-20
Grade
CA360
Tube Outside Diameter
1/2 in.
Material
Brass
Vibration Resistance
Fair
Meets Standards
SAE and DOT FMVSS 571.106
Working Pressure
Up to 150 psi

Product Description

90° Long Male Elbow Air Brake Fitting For Nylon Tubing
  • Applications Include Air Brake Systems, Air Controls, And Gauge Lines.
  • Exceeds DOT Pressure Requirements For Air Brake Systems.
  • For Use With SAE J844 Type A Or B Nylon Tubing .
  • Easy To Assemble Tubing Does Not Have To Be Flared. No Special Tools Required.
  • Excellent For Use In Heavy-Duty Truck Air Brake Systems.
  • Low Cost, Many Styles Available, No Flare Required, Easy To Assemble.
  • Exceeds Pressure Requirements Of Heavy-Duty Truck Air Brake Systems.
  • Note: Fittings Are Shipped With Nuts, Sleeves, And Inserts Pre-Assembled And Ready To Slip Onto Tubing.
  • Tube Outside Diameter: 1/2
  • Thread Size: 11/16-20
  • Pipe Thread: 3/8
  • Cross Reference: 1469 X 8L

Expertly Selected Product Pairings

Glad Hand Blue/Service
$13.50 pkg | $6.75 ea
Item: 90626 | Pkg Qty: 2
A/B Sleeve 1/2
Item: 90652 | Pkg Qty: 25
A/B Nut 1/2
Item: 90657 | Pkg Qty: 10

Compliance & Restrictions

California Proposition 65 Icon
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
0907020
A/B 90' Male Elb 1/2 X 3/8 Lg
 NameItemDescription
WEATHERHEADWEATHERHEAD1469X8LA/B 90 MALE ELB 1/2X3/8L
UNSPSC CODESUNSPSC CODES27131600Air fittings and connectors
VMRS (ATA) CODESVMRS (ATA) CODES053-008-004A/B 90 ML EL 1469X8L
