Technical Specifications
Brand
TRUCK-LITE
Pigtail/Harness Length
10 in.
Connection Type
Right Angle Stop, Tail, Turn Plug
Pigtail/Harness Style
Right Angle Stop, Tail, Turn Plug
Features
11'' S/T/T Plug w/ #10 Ring Terminal and 6/32'' Wire Strip, For Use w/ Double Contact Sealed Incandescent Lamps
Shipping Weight
0.06 lb.
Function
Stop, Tail, Turn
Terminal Material
Tin Plated Brass
Item
Pigtail
Termination Style
#10 Ring, Two 6/32 Inch Wire Strips
Mfr. Part Number
94993-3
Type
Stop/Turn/Tail
Number of Wires
3
Wire Color
White, Red, Black
Pack Quantity
1
Wire Gauge
16 AWG
Product Description

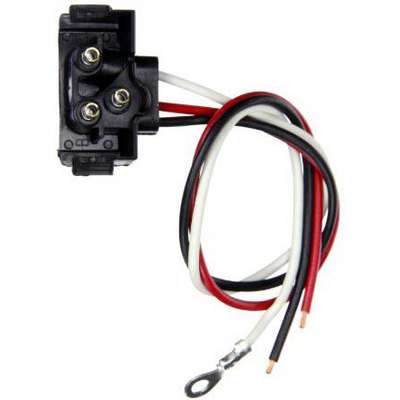

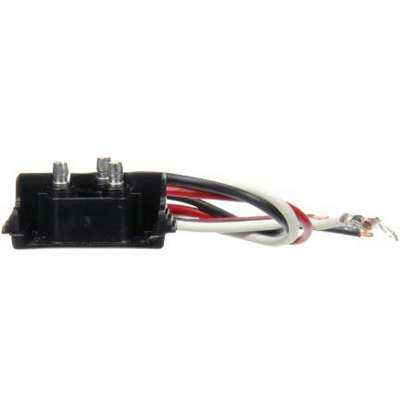

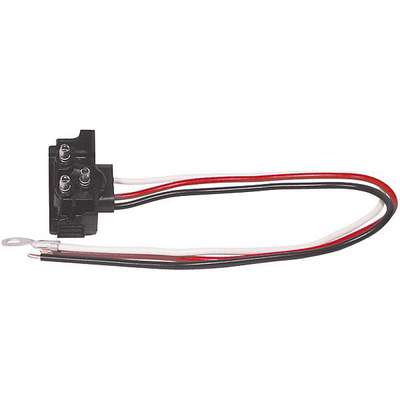

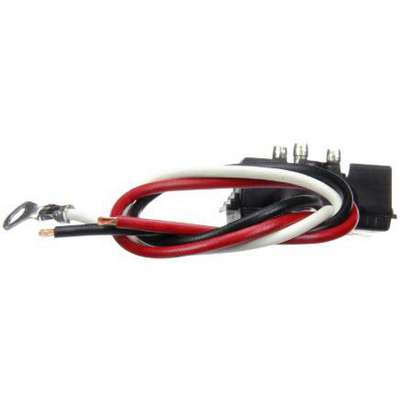

Right Angle Stop/Turn/Tail Plug
- For Use With Double Contact Sealed Incandescent Lamps.
- Length: 10"
- Termination: 6/32" Wire Strip, #10 Ring Terminal
- Cross Ref: 94993
- Recommended For Use With Electrical Compound, Part No. 80898 Or 80899 .
Item Barcode
Plug-Stop,Turn,Tail 90° #94993
| Name | Item | Description | |
|---|---|---|---|
|
TRUCKLITE VNDOR ITEMS | 94993 | RIGHT ANGLE PLUG #94993 |
|
|
TRUCKLITE VNDOR ITEMS | 94993-3 | RIGHT ANGLE PLUG #94993 |
|
UNSPSC CODES | 25172901 | RIGHT ANGLE PLUG #94993 |
|
VMRS (ATA) CODES | 034-004-145 | RIGHT ANGLE PLUG #94993 |
