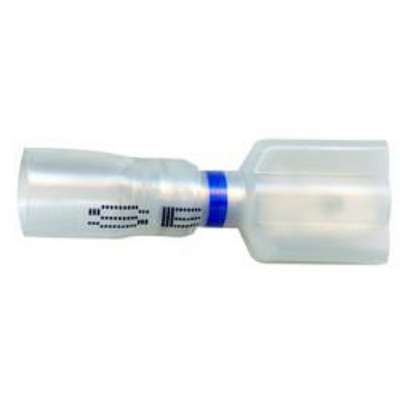

Nspa Optiseal Ionic Polymer Sealed Heat Shrink Male Quick Disconnect, Clear/Blue, 16-14 AWG
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Operating Temperature
257deg. F
Color Family
Blue
Package Quantity
50
Connection Material
Copper
Shipping Weight
0.19 lb.
Connection Type
Crimp
Tab Thickness
0.032 in.
Connector Style
Sealed
Tab Width
1/4 in.
Heat Shrink Terminal Connector
Male Quick Disconnect
Temperature Range (Deg. C)
-55 to 125 deg. C
Insulation Material
Ionic Polymer
Temperature Range (Deg. F)
-67 to 257 deg. F
Insulation Type
Heat Shrink
Trade Name
OPTISEAL
Item
Heat Shrink Terminal
Wire Gauge Range
16-14 AWG
Mfr. Part Number
OS69-14-250M-PK
Product Description
Optiseal Clear Heat Shrink Connector
- Made With Crystal Clear™ Heat Shrink Tubing Providing Optimal Clarity For Visual Inspection.
- Adhesive-Lined Tubing Ensures A Waterproof Seal.
- Window In Center Of Connector Assures The Wire Is Seated Properly And That The Wire Is Being Crimped To The Connector.
- Color Coded Stripes Identify Wire Gauge To Be Used.
- Color Coded Stripes Also Indicate The Proper Crimp Location.
Frequently Bought Together
Currently Viewing
Clr Hs Qd Male 16-14 .250TAB
| #75896 | Pkg Qty: 50
| #583-1 | Pkg Qty: 1
Available Assortments View All
Documents
Item Barcode
Clr Hs Qd Male 16-14 .250TAB
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121432 | |
 | VMRS (ATA) CODES | 053-007-002 | CLEAR HS QD MALE 16-14 |
