Technical Specifications
Brand
METRI-PACK
Series
150.2
Cavities
2
Shipping Weight
0.12 lb.
Item
Double Housing
Temperature Range (Deg. C)
-40 to +125 deg. C
Pack Quantity
5
Wire Gauge
18 AWG
Product Description

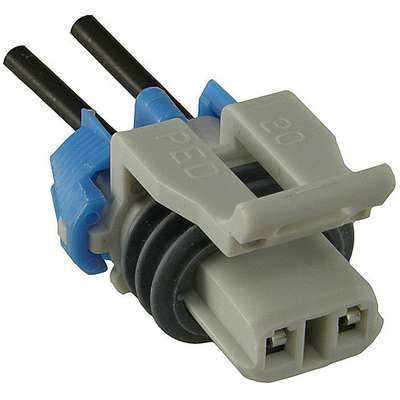

- Metri-Pack 150 Delphi Connector Series. These in-line delphi connectors are ideal for space-limited applications and are used in high demand situations along with low-energy electronic circuits. As with all Metri-Packs the Terminal Position Assurance (TPA) holds the terminals firmly in the connector bodies and act as strain reliefs. Delphi Connector Position Assurance (CPA) secures mating halves together. The triple-rib silicone coated Packard cable seals ensure a completely sealed configuration. Rated for 16 volts and 14 amps.*Uses triple-rib peripherial silicone rubber seals, making them ideally suited for critical, low-energy electronic applications that require protection from environmental hazards.
- Low energy, low voltage.
- Excellent resistance to temperature, chemicals, and abrasion.
- Temperature Range: -40 C. to 125 C.
- 14 amps continuous maximum current rating.
- Description: 2 Cavity with 10" 18 gauge GXL leads.
- Cross Reference: 12116958
Item Barcode
Double 150 Metri Pack Housing
| Name | Item | Description | |
|---|---|---|---|
|
UNSPSC CODES | 39121700 | |
|
VMRS (ATA) CODES | 053-007-002 | METRI PACK F EMALE HOUSNI |
