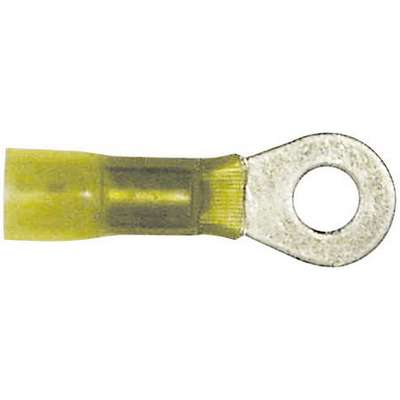

Solder & Seal Ring Terminal, Yellow, 12-10 Awg, 1/4-5/16" Stud Size

Hover over image to magnify
Solder Sealed Yellow 1/4-5/16
Solder Sealed Yellow 1/4-5/16

#74560 | Pkg Qty: 50

Item Number 74560
Scanner Description Solder Sealed Yellow 1/4-5/16
Inventory Status In Stock
Weight 0.35 lb
Brand APPROVED SUPPLIER
Catalog E10

Technical Specifications

Brand
APPROVED SUPPLIER
Solder Seal Connector Type
Ring
Color Family
Yellow
Stud/Tab Size
1/4-5/16 in.
Connection Material
Plated Copper
Temperature Range (Deg. C)
-55 to +110 deg. C
Connection Type
Solder and Seal
Temperature Range (Deg. F)
-67 to +230 deg. F
Insulation Material
Polyolefin
Voltage
600 V
Item
Terminal
Wire Gauge
12-10 AWG
Pack Quantity
50

Product Description

Solder Ring Terminal
  • Fluxed Solder Ring Melts And Flows When Heated, Which Strengthens The Connector.
  • Complete Waterproof Connection.
  • Sleeves Are Color-Coded For Fast Identification.
  • No Special Tools Required.
  • Temperature Rating Of Installed Splice: -65 F. To 275 F.
  • Stud Size: 1/4-5/16
  • Wire Range: 12-10
  • Color: Yellow

Compliance & Restrictions

Prop 65 WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Safety Data Sheet (SDS)  View | Download
Item Barcode
0745600
  Name Item Description
UNSPSC CODES UNSPSC CODES 39121432 SOLDER SEAL TERMINAL
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 SOLDER SEAL TERMINAL
