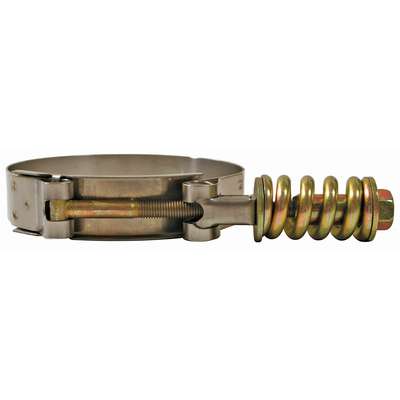

Norma 300 Stainless Steel Spring Loaded T-Bolt Clamp; Clamp Dia. Range: 4-9/16" to 4-7/8"

Hover over image to magnify
T-Bolt Clamp W/S 4 9/16-4 7/8"
T-Bolt Clamp W/S 4 9/16-4 7/8"

#74376 | Pkg Qty: 5

Clamp Diameter Range : 4-9/16 in. to 4-7/8 in.
Item Number 74376
Scanner Description T-Bolt Clamp W/S 4 9/16-4 7/8"
Inventory Status In Stock
Weight 2.06 lb
Brand NORMA
Catalog B3

Technical Specifications

Band Material
300 Stainless Steel
Bridge Material
300 Stainless Steel
Band Thickness
0.025 in.
Clamp Diameter Range
4-9/16 in. to 4-7/8 in.
Band Width
0.75 in.
Item
T-Bolt Clamp
Bolt Finish
Long Steel
Mfr. Part Number
B9224-0456B
Brand
NORMA
Pack Quantity
5

Product Description

Spring Loaded T-Bolt Clamp
  • For Heavy-Duty Vehicle, Construction, Military, And Commercial Use.
  • Diameter Adjustment Range Is 5/16 Minimum To Maximum.
  • 1/4 - UNF X 2-3/4 Long Steel Plated Bolts Are Standard.
  • Carbon Steel Plated Washer And Hex Nut.
  • 3/4" Wide X .025" Thick 300 Series Stainless Steel Heavy-Duty Band Material.
  • Heavy Duty Spring
  • Minimum Diameter: 4-9/16
  • Maximum Diameter: 4-7/8
Item Barcode
0743760
  Name Item Description
UNSPSC CODES UNSPSC CODES 31162906 T-BOLT CLAMP W/S 4.56-4.8
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-007 T-BOLT CLAMP W/S 4.56-4.8
