DEUTSCH

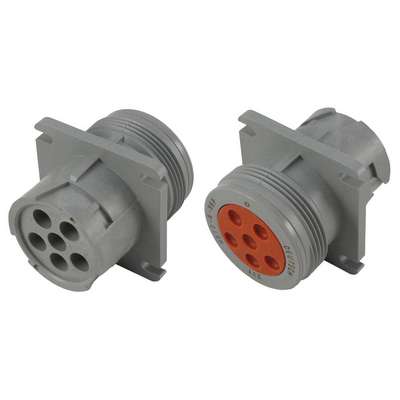

Deutsch Receptacle 6 Cavities-Flange Hd10-6-96P
Hover over image to magnify
Technical Specifications
Amperage
13 A
Item
Receptacles
Brand
DEUTSCH
Mfr. Part Number
HD10-6-96P
Cavities
6
Number of Positions
6
Color Family
Gray
Package Quantity
1
Connector Type
Deutsch Connector
Series
Hd10
Contact Size
16
Shipping Weight
0.08 lb.
Contact Type
Pin
Temperature Range (Deg. F)
-55 to +125 deg. F
Housing Material
Polyamide
Wire Range
14 to 20 AWG
Product Description
Deutsch Hd Series Connector
- Hd 10 Series Flange Receptacle
- Wire Gauge: 20-14
- Contact Size: 16
- Curent Rating: 13Amps
- Cavities: 6
- Cross Reference: Hd10-6-96P
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Deutsch Receptacle 6 Cavities
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121700 | DEUTSCH RECP 2 CAVITIES |
 | VMRS (ATA) CODES | 053-007-002 | Electrical Items - Expendable (Wire Misc.) |
