Technical Specifications
Brand
METRI-PACK
Pack Quantity
5
Cavities
2
Series
480
Item
Female Housing
Temperature Range (Deg. C)
-40 to +125 deg. C
Mfr. Part Number
F480SS-2

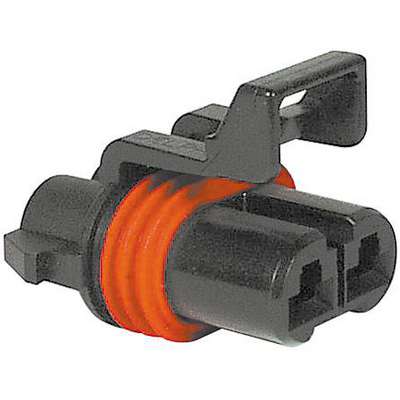

Product Description
Metri-Pack 480 Series Female Terminal
- Uses Triple-Rib Peripherial Silicone Rubber Seals, Making Them Ideally Suited For Critical, Low-Energy Electronic Applications That Require Protection From Environental Hazards.
- Low Energy, Low Voltage.
- Excellent Resistance To Temperature, Chemicals, And Abrasion.
- Temperature Range: -40° C. To 125° C.
- 42 Amps Continuous Maximum Current Rating.
- Cross Reference: 12052613
- Double Female Housing Used With Double Male Housing, Part No. 74021 , Female Terminal (12-10 Gauge), Part No. 74016 , Terminal Position Assurance (Double), Part No. 74022 , And Connector Position Assurance, Part No. 74015 .
- Can Be Used With Purple Cable Seal (10 Gauge), Part No. 74018 Or Red Cable Seal (12 Gauge), Part No. 74019 .
- To Disassemble, Use Metri-Pack Release Tool, Part No. 74048 .
Item Barcode
Female Housing Double
| Name | Item | Description | |
|---|---|---|---|
|
UNSPSC CODES | 39121700 | FEM HOUSING DOUBLE |
|
VMRS (ATA) CODES | 052-007-002 | FEM HOUSING DOUBLE |
