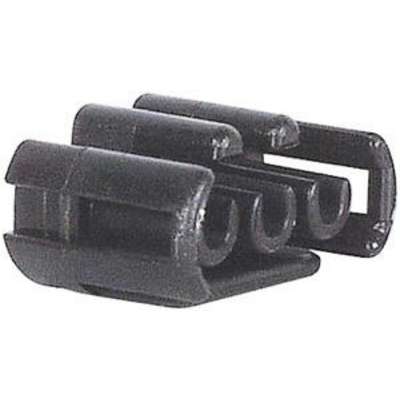

Triple Female Terminal Position Assurance

Hover over image to magnify
Fem. Term. Position Assurance
Fem. Term. Position Assurance

#74013 | Pkg Qty: 10

Item Number 74013
Scanner Description Fem. Term. Position Assurance
Inventory Status In Stock
Weight 0.07 lb
Brand METRI-PACK
Catalog E26

Available Assortments View All

Technical Specifications

Brand
METRI-PACK
Series
280
Item
Female Triple Position Assurance
Temperature Range (Deg. C)
-40 to +125 deg. C
Pack Quantity
10

Product Description

Metri-Pack 280 Series Terminal
  • Metri-Pack 280 Delphi Connectors. These In-Line Delphi Connectors Feature High Current And Current Density In A Small, Compact Design. Because Of Their Excellent Resistance To Temperature, Chemicals, And Abrasions, 280 Series Delphi Connectors May Be Used In Under-Hood Automotive Applications As Well As Most Marine, Off-Road, And Agricultural Applications. Rated For 16 Volts And 30 Amps, Delphi Connectors Must Be Used In Conjunction With A Sealed Splice Pack System.
  • Uses Triple-Rib Peripherial Silicone Rubber Seals, Making Them Ideally Suited For Critical, Low-Energy Electronic Applications That Require Protection From Environental Hazards.
  • Low Energy, Low Voltage.
  • Excellent Resistance To Temperature, Chemicals, And Abrasion.
  • Temperature Range: -40° C. To 125° C.
  • 30 Amps Continuous Maximum Current Rating.
  • Cross Reference: 12034145
  • Female Terminal Position Assurance (Triple) Used With Triple Female Housings, Part No. 74011 , And With Connector Position Assurance, Part No. 74015 .
  • Use With Gray Cable Seal, Part No. 74002 For 16-14 Gauge Wire Or Blue Cable Seal, Part No. 74003 For 12 Gauge Wire.
  • To Disassemble, Use Metri-Pack Release Tool, Part No. 74048 .
Item Barcode
0740130
  Name Item Description
UNSPSC CODES UNSPSC CODES 39121700 FEMALE TERM POS ASSUR.
VMRS (ATA) CODES VMRS (ATA) CODES 052-007-002 FEMALE TERM POS ASSUR.
