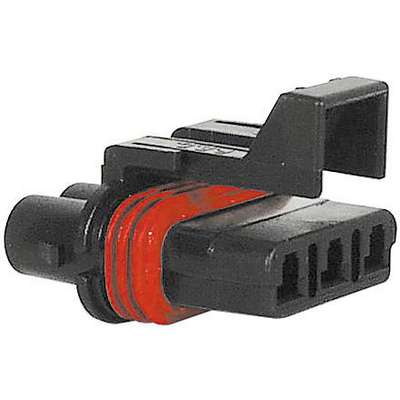

Triple Metri-Pack Female Housing 280 Series

Hover over image to magnify
Female Housing Triple
Female Housing Triple

#74011 | Pkg Qty: 5

Item Number 74011
Scanner Description Female Housing Triple
Inventory Status In Stock
Weight 0.08 lb
Brand METRI-PACK
Catalog E26

Available Assortments View All

Technical Specifications

Brand
METRI-PACK
Series
280
Cavities
3
Temperature Range (Deg. C)
-40 to +125 deg. C
Item
Female Triple Housing
Wire Gauge
16-14 AWG
Pack Quantity
5

Product Description

Metri-Pack 280 Series Terminal
  • Metri-Pack 280 Delphi Connectors. These In-Line Delphi Connectors Feature High Current And Current Density In A Small, Compact Design. Because Of Their Excellent Resistance To Temperature, Chemicals, And Abrasions, 280 Series Delphi Connectors May Be Used In Under-Hood Automotive Applications As Well As Most Marine, Off-Road, And Agricultural Applications. Rated For 16 Volts And 30 Amps, Delphi Connectors Must Be Used In Conjunction With A Sealed Splice Pack System.
  • Uses Triple-Rib Peripherial Silicone Rubber Seals, Making Them Ideally Suited For Critical, Low-Energy Electronic Applications That Require Protection From Environental Hazards.
  • Low Energy, Low Voltage.
  • Excellent Resistance To Temperature, Chemicals, And Abrasion.
  • Temperature Range: -40° C. To 125° C.
  • 30 Amps Continuous Maximum Current Rating.
  • Cross Reference: 12040977
  • Triple Female Housing Used With Triple Male Housing, Part No. 74012 , Female Terminal (16-14 Gauge), Part No. 74000 , And Female Terminal Position Assurance, Part No. 74013 .
  • Can Be Used With Gray Cable Seal (16-14 Gauge), Part No. 74002 Or Blue Cable Seal (12 Gauge), Part No. 74003 .
  • To Disassemble, Use Metri-Pack Release Tool, Part No. 74048 .
Item Barcode
0740110
  Name Item Description
UNSPSC CODES UNSPSC CODES 39121700 METRI-PACK FEM HOUSING
VMRS (ATA) CODES VMRS (ATA) CODES 052-007-002 METRI-PACK FEM HOUSING
