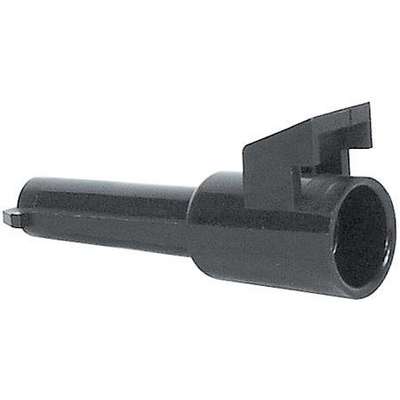

Metri-Pack Single Metri Pack Male Housing 280 Series

Technical Specifications

Product Description

Metri-Pack 280 Series Terminal

• Metri-Pack 280 Delphi Connectors. These In-Line Delphi Connectors Feature High Current And Current Density In A Small, Compact Design. Because Of Their Excellent Resistance To Temperature, Chemicals, And Abrasions, 280 Series Delphi Connectors May Be Used In Under-Hood Automotive Applications As Well As Most Marine, Off-Road, And Agricultural Applications. Rated For 16 Volts And 30 Amps, Delphi Connectors Must Be Used In Conjunction With A Sealed Splice Pack System.
• Uses Triple-Rib Peripherial Silicone Rubber Seals, Making Them Ideally Suited For Critical, Low-Energy Electronic Applications That Require Protection From Environental Hazards.
• Low Energy, Low Voltage.
• Excellent Resistance To Temperature, Chemicals, And Abrasion.
• Temperature Range: -40° C. To 125° C.
• 30 Amps Continuous Maximum Current Rating.
• Cross Reference: 12065171
• Single Male Housing Used With Single Female Housing, Part No. 74004 , Male Terminal (16-14 Gauge), Part No. 74001 , Terminal Position Assurance (Single), Part No. 74006 , And Connector Position Assurance, Part No. 74007 .
• Can Be Used With Gray Cable Seal (16-14 Gauge), Part No. 74002 Or Blue Cable Seal (12 Gauge), Part No. 74003 .
• To Disassemble, Use Metri-Pack Release Tool, Part No. 74048 .
