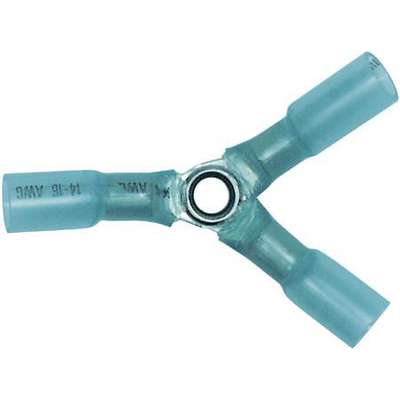

Imperial® Seal-A-Crimp® Polyolefin Sealed Heat Shrink Three-Way Connector, Blue, 16-14 AWG

Zoom Icon
Secondary Item Image
Secondary Product Video

#72092 | Pkg Qty: 25

Item Number 72092
Scanner Description 3-Way Butt 16-14 Blue
Inventory Status In Stock
Weight 0.2 lb
Brand IMPERIAL
Trade Name SEAL-A-CRIMP
Catalog E2

Technical Specifications

Brand
IMPERIAL
Insulation Type
Heat Shrink
Color Family
Blue
Item
Heat Shrink Terminal
Connection Material
Copper
Pack Quantity
25
Connection Type
Crimp
Temperature Range (Deg C)
-55 to +125 deg. C
Connector Style
Sealed
Temperature Range (Deg F)
-67 to +257 deg. F
Heat Shrink Terminal Connector
Three-Way Connector
Trade Name
SEAL-A-CRIMP
Insulation Material
Polyolefin
Wire Gauge Range
16-14 AWG

Product Description

Seal-A-Crimp® 3-Way Connector Terminal

  • A Totally Environmental Sealed Terminal Connection.
  • Simply Crimp And Heat. A Special Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
  • This Dual-Wall, Heat Seal Terminal Is Specifically Suited For Those Applications Which Require "Environment Proof" Connections.
  • The Construction Of This Unique Terminal Begins With A Funnel Entry Terminal Made Of Pure Electrolytic (Ept) Copper And Is Plated To Resist Corrosion.
  • Operating Temperature Range: -55° C. To 125° C.
  • Stud Size: 16-14
  • Wire Gauge: 16-14
  • Color: Blue

Compliance & Restrictions

Lot Tracked Item Lot tracked item

Documents

Item Barcode
0720920
  Name Item Description
UNSPSC CODES UNSPSC CODES 39121432 SEAL-A-CRIMP 3-WAY BLUE
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 SEAL-A-CRIMP 3-WAY BLUE
