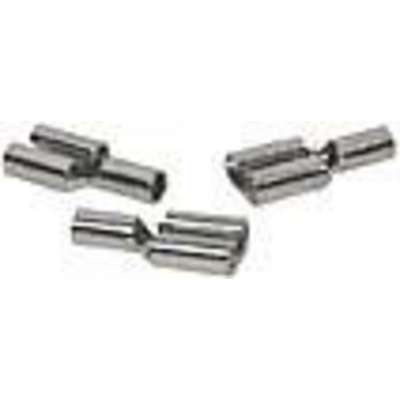

3M Non-Insulated Female Quick Disconnect Terminal, 16-14 Awg
Hover over image to magnify
Technical Specifications
Key Specifications
Brand
3M
Non-Insulated Terminal Connector
Female Quick Disconnect
Connection Material
Nickel Plated Steel
Pack Quantity
50
Connection Type
Non-Insulated
Shipping Weight
0.1 lb.
Continuous Duty Temperature
Up to +900 deg. F
Tab Thickness
0.032 in.
Intermittent Duty Temperature
Up to +1200 deg. F
Tab Width
1/4 in.
Item
Terminal
Type
Disconnect
Mfr. Part Number
5400729370
Wire Gauge
16-14 AWG
General
Features
High Temp,Non Insulated Female
Product Description
Female Quick Disconnect Specialty Terminal
- Rugged Alloy Construction; Designed For High Stress, High Temperature, And High Vibration Applications.
- Ul And Csa Rated And Approved.
- Alloy Plating Complies With Mil-T-10727 Cord.
- Used With Solid Or Strand Wire.
- Operates To 900° F. Continuous Duty; 1,200° F. Intermittent Duty.
- Wire Range: 16-14
- Tab Width: .250
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
16-14 Hi-Temp Fem Qk Disc
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121613 | HI-TEMP FEM QK DIS 16-14 |
 | VMRS (ATA) CODES | 053-007-002 | HI-TEMP FEM QK DIS 16-14 |
