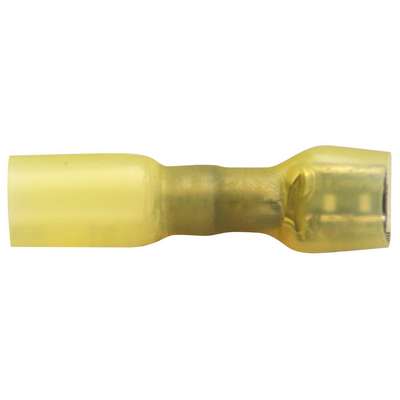

Crimp Soldered Seal Female Quick Disconnect Terminal, Yellow, 12-10 Awg

Hover over image to magnify
Crmp Sldr Seal 10-12GA Qk Disc
Crmp Sldr Seal 10-12GA Qk Disc

#70908 | Pkg Qty: 50

In Stock

Shipping to 60045
Catalog: E8

Technical Specifications

Brand
APPROVED SUPPLIER
Package Quantity
50
Color Family
Yellow
Shipping Weight
0.25 lb.
Connection Material
Plated Copper
Tab Thickness
0.03 in.
Connection Type
Crimp Soldered Seal
Tab Width
1/4 in.
Crimp/Solder/Seal Connector
Female Quick Disconnect
Temperature Range (Deg. C)
-55 to +110 deg. C
Insulation Material
Polyolefin
Temperature Range (Deg. F)
-67 to +230 deg. F
Item
Terminal
Voltage
600 V
Mfr. Part Number
709080
Wire Gauge
12-10 AWG

Product Description

Multilink Quick Disconnect Terminal
  • Crimped, Soldered, And Sealed Connection Meets Or Exceeds O.E.M. Standards.
  • High Quality Brazed Seam Crimp Connector.
  • Pre-Fluxed, Low Temperature Solder.
  • Translucent, Adhesive-Lined Heat Shrink Tubing.
  • Wire Gauge: 10-12
  • Color: Yellow
  • Style: Female
  • Tab Size: .250" X .030"

Compliance & Restrictions

SDS Available
SDS Available View | Download
Item Barcode
0709080
Crmp Sldr Seal 10-12GA Qk Disc
 NameItemDescription
UNSPSC CODESUNSPSC CODES39121432CRIMP SOLDER SEAL TERMINAL
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009CRIMP SOLDER SEAL CONNECTOR
