Ionic Polymer Sealed Heat Shrink Butt Connector, Clear/Yellow, 12-10 AWG

Hover over image to magnify
Clear Hs Butt Conn 12-10 Ylw
Clear Hs Butt Conn 12-10 Ylw
Ionic Polymer Sealed Heat Shrink Butt Connector, Clear/Yellow, 12-10 AWG Video

#70902 | Pkg Qty: 50

In Stock

Shipping to 60045
Catalog: E4

Technical Specifications

Brand
APPROVED SUPPLIER
Item
Heat Shrink Terminal
Color Family
Yellow
Mfr. Part Number
OS55-10-PK
Connection Material
Copper
Operating Temperature
257deg. F
Connection Type
Crimp
Package Quantity
50
Connector Style
Sealed
Shipping Weight
0.35 lb.
Heat Shrink Terminal Connector
Butt Connector
Temperature Range (Deg. C)
-55 to +125 deg. C
Insulation Material
Ionic Polymer
Temperature Range (Deg. F)
-67 to +257 deg. F
Insulation Type
Heat Shrink
Wire Gauge Range
12-10 AWG

Product Description

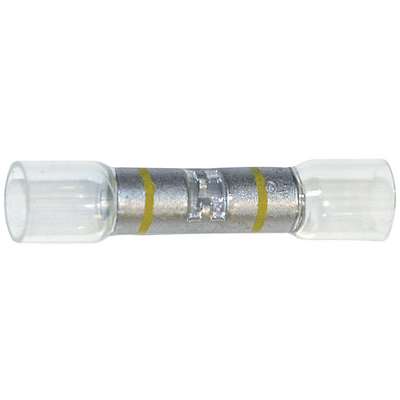

Optiseal Clear Heat Shrink Butt Connector
  • Made With Crystal Clear™ Heat Shrink Tubing Providing Optimal Clarity For Visual Inspection.
  • Adhesive-Lined Tubing Ensures A Waterproof Seal.
  • Window In Center Of Connector Assures The Wire Is Seated Properly And That The Wire Is Being Crimped To The Connector.
  • Color Coded Stripes Identify Wire Gauge To Be Used.
  • Color Coded Stripes Also Indicate The Proper Crimp Location.
  • Seamless Butt Connectors Ensure Superior Crimp Performance.
  • Wire Gauge: 12-10
  • Tube Color: Clear
  • Strip Color: Yellow
Available Assortments View All
Clear Heat Shrnk Term Assort
Item: 583-1
Pkg Qty: 1

Documents

Item Barcode
0709020
Clear Hs Butt Conn 12-10 Ylw
 NameItemDescription
UNSPSC CODESUNSPSC CODES39121432HEAT SHRINK CONNECTOR
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002HEAT SHRINK CONNECTOR
