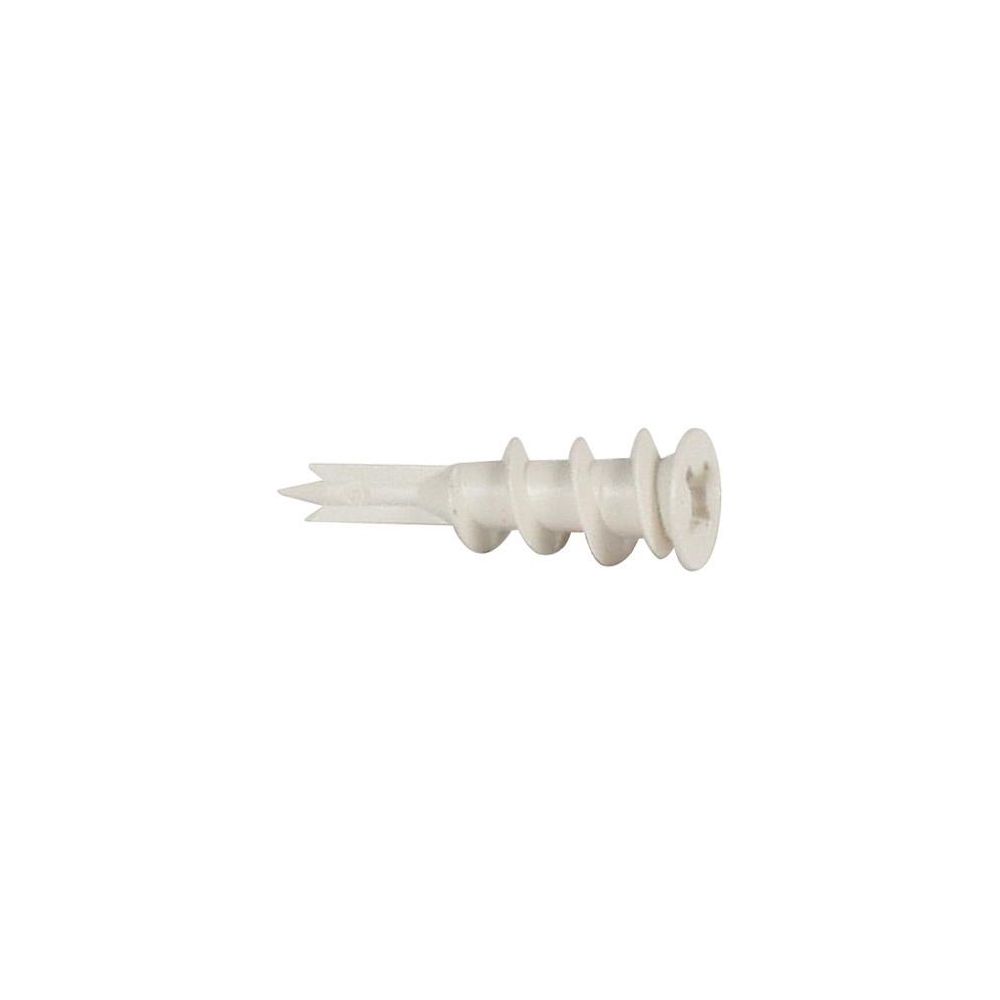

Nylon E-Z Anchor Lite

Nylon E-Z Anchor Lite

Item Number 11261
Scanner Description Nylon E-Z Anchor Lite
Weight 0.2 lb
Brand APPROVED SUPPLIER
Catalog B38
Pkg Qty: 100

Add to List

Technical Specifications

Brand APPROVED SUPPLIER   Pack Quantity 100

Product Description

  • No hole preparation necessary. The anchor pre-drills it's own small precise hole in gypsum wallboard.
  • Deep thread design provides strong engagement in 3/8", 1/2", and 5/8" gypsum wallboard.
  • Installs quickly and easily with a #2 phillips screwdriver or power-driver.
  • Can be easily backed-out.
  • Anchor Material: Corrosion resistant, non-conductive white nylon.
  • Sheet Metal Screw Size: 6 x 1-1/4
  • Maximum Fixture Thickness: 3/4"
  • Anchor Size: 1-5/16 length with a 3/8" wide, low profile head.
Performance Data
Pullout (Ultimate Average Pounds)
Gypsum Thickness
Shear (Ultimate Average Pounds)
Gypsum Thickness
3/8" - 25 lb1/2" - 30 lb5/8" - 40 lb3/8" - 80 lb1/2" - 90 lb5/8" - 120 lb
InstructionsInstallation Guidelines
  1. Place #2 phillips screwdriver into recess of E-Z Ancor Lite™.
  2. Press into drywall while turning the anchor clockwise until it is seated flush with wall.
  3. Place fixture in position over installed E-Z Ancor Lite™. Insert screw with screwdriver. Tighten fixture in place.

Item Barcode

0112610
  Name Item Description
UNSPSC CODES UNSPSC CODES 31162103 NYLON E-Z ANCHOR LITE
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-023 NYLON E-Z ANCHOR LITE
