ACME ELECTRIC

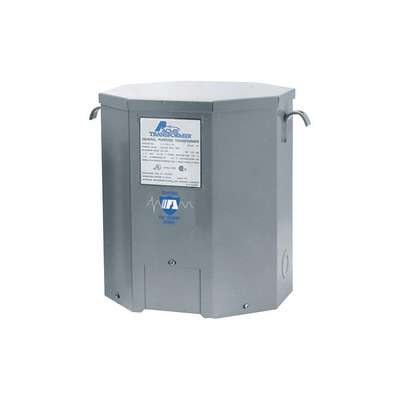

Acme Electric Single Phase Transformer: 120V Ac/208V Ac/240V Ac/277V Ac, 120V Ac/240V Ac, Wall
Hover over image to magnify
#942559-8Pkg Qty: 1
$4,157.86 pkg | $4,157.86 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
ACME ELECTRIC
Mfr. Part Number
T279747S
Color Family
Gray
Mfr. Warranty Length
10 yr.
Depth
11.65 in.
Mounting
Wall
Enclosure Finish
Powder Coated
Output Voltage
120/240VAC
Enclosure Material
Steel
Package Quantity
1
Enclosure Rating
NEMA 3R
Phase
Single
Enclosure Type
Indoor/Outdoor
Shipping Weight
162 lb.
Height
16.94 in.
Temperature Rise
115deg. C
Hz
60
Transformer Winding Material
Aluminum
IP Rating
14
VA Rating
15kVA
Input Voltage
120/208/240/277VAC
Width
14.12 in.
Item
Single Phase Transformer
General
Hz - Electrical
60 Hz
Output Voltage - Transformer
120V AC, 240V AC
Input Voltage - Transformer
120V AC, 208V AC, 240V AC, 277V AC
Standards
UL Listed,CSA Certified
Knockout Size - Transformer
1 in, 1 1/2 in
VA Rating - Transformer
15 kVA
Outdoor Rated - Transformer
Yes
Voltage Function - Transformer
Step Down
Product Description
Acme's full line of single phase transformers include a range of options for primary and secondary winding voltages, stainless steel enclosures for use in corrosive environments. These transformers are designed for use in industrial and commercial applications. Transformers rated up to 25 kVA are enclosed within an encapsulated, NEMA 3R enclosures. Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air.
Item Barcode
Transformer,15kVA
