AIRMASTER FAN

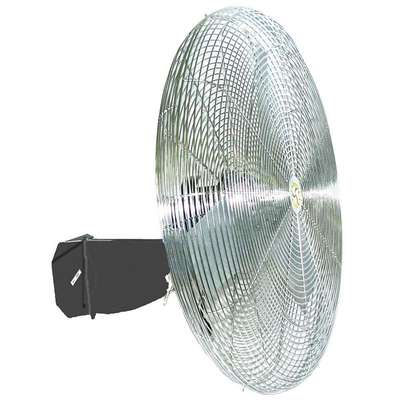

Airmaster Fan Light-Duty Industrial Fan: 30 in Blade Dia, 2,700/4,400/6,100 cfm, 115 V AC

Hover over image to magnify
Air Circulator,30",6100 Cfm,
Air Circulator,30",6100 Cfm,

#938997-6 | Pkg Qty: 1

Pricing is subject to change without notice
Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Air Circulator,30 In,8130 Cfm,
$415.99 pkg | $415.99 ea
Item: 912721-5
Pkg Qty: 1

Technical Specifications

Key Specifications
Air Flow
2,700/4,400/6,100 cfm
Motor RPM
1100
Bearing Type
Ball
Motor Type
Permanent Split Capacitor
Blade Diameter
30 in.
Mounting Location
Wall, Ceiling
Blade Material
Galvanized Steel
Mounting Style
Wall-Mounted
Brand
AIRMASTER FAN
Number of Blades
3
Cord Length
15 ft.
Number of Speeds
3
Guard Material
Steel
Pack Quantity
1
Height
30 in.
Phase
1
Housing Material
Steel
Shipping Weight
57 lb.
Hz
60 Hz
Sound Level
76 dBA
Item
Light-Duty Industrial Fan
Thermal Protection
Auto
Mfr. Part Number
71582
Voltage
115 VAC
Mobile/Stationary
Stationary
Watts
265
Motor Enclosure
Totally Enclosed Air Over
Width
33 in.
Motor Insulation
Class B
General
Air Velocity @ 10 Ft.
700 fpm
Fan Mounting Location
Ceiling, Wall
Air Velocity @ 20 Ft.
500 fpm
Includes
Secondary Safety Support Cable, Wall Bracket
Air Velocity @ 40 Ft.
400 fpm
Max. Ambient Temp.
104 Degrees F
Air Velocity @ 60 Ft.
300 fpm
Oscillation
Oscillating
Air Velocity @ 80 Ft.
200 fpm
Shaft Dia.
5/8 in
Application
Spot Cooling
Wheeled Base
Stationary
Environmental Applications
Commercial
Wire Guard Finish
Nickel Chrome

Product Description

Light-duty industrial wall-mount fans cool light manufacturing areas, warehouses, and other dry, clean spaces where floor space is limited. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have a lower-horsepower motor with less-robust bearings.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
