Home All Products Pneumatics Compressed Air Treatment Filter/Regulators SKU: 938303-6
WILKERSON

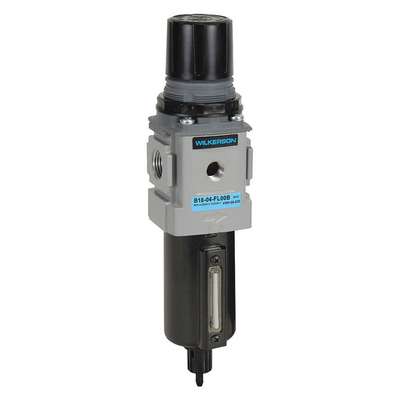

Filter-Regulator: 1/4 in NPT, 148 cfm, 5 micron, 0 psi to 125 psi, 250 psi Max Op Pressure

Hover over image to magnify
Filter-Regulator,Particles/
Filter-Regulator,Particles/

#938303-6 | Pkg Qty: 1

$104.69 pkg | $104.69 ea

Technical Specifications

Key Specifications
Adjustment Knob
Non Rising
Includes
Panel Nut
Brand
WILKERSON
Pack Quantity
1
Drain Type
Manual
Replaces
Wilkerson B18-02-FL00-17
General
Adjustment Mechanism
Knob
For Substance Type
Particles, Water
Adjustment Mechanism Material
Acetal
Gauge Port Size
1/4 in
Adjustment Range - Air Treatment
0 to 125 psi
Max. Flow - Air Treatment
140 cfm
Air Inlet Type
NPT
Max. Flow Range - Air Treatment
101 to 150 cfm
Air Outlet Size
1/4 in
Max. Incoming Pressure - Air Treatment
250 psi
Air Outlet Type
NPT
Maximum Regulated Pressure
125 psi
Bowl Material - Air Treatment
Metal with Sight Gauge
Minimum Regulated Pressure
0 psi
Bowl Size - Air Treatment
1.7 oz
Modular Connection
Modular Connection
Connection Size - Air Treatment
1/4 in NPT
Number of Air Inlets
1
Differential Pressure Indicator Included
Yes
Number of Air Outlets
1
Drain Part Compatibility
GRP-96-636
Pressure Drop
14.5 psi
Filter Bowl Capacity
1.72 oz
Pressure Gauge Included
No
Filter Bowl Material
Metal
Pressure Gauge Port Size
1/4 in
Filter Element Material
Polyethylene
Regulator Type
Relieving
Filter Rating - Air Treatment
5 micron
Sight Gauge Included
Yes
For Fluid Type
Particles, Water
Size - Air Treatment
Compact
For Removal Of
Particles, Water
System Location
Air Line

Product Description

Filter-Regulator, Connection Size - Air Treatment 1/4 in NPT, Filter Rating - Air Treatment 5 micron, Max. Incoming Pressure - Air Treatment 250 psi, Max. Flow - Air Treatment 140 cfm, Adjustment Range - Air Treatment 0 to 125 psi, Bowl Material - Air Treatment Metal with Sight Gauge, Size - Air Treatment Compact, Bowl Size - Air Treatment 1.7 oz, Max. Temp. 150 Degrees F, Gauge Port Size 1/4 in, Non Rising Adjustment Knob, Drain Type Manual, Overall Height 10.31 in, Overall Width 2.37 in

Compliance & Restrictions

California Proposition 65 Icon
WARNING: This product can expose you to chemicals including Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
9383036
Filter-Regulator,Particles/
  Name Item Description
Grainger Dropship Grainger Dropship 55CR18
UNSPSC CODES UNSPSC CODES 27131603
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009

For more product information by email, click here
