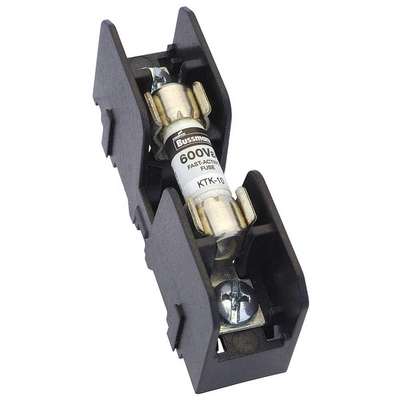

Fuse Block, Midget, 0 to 30 A, Fuse UL Class Midget, 600V AC/300V DC

Hover over image to magnify
Fuse Block,0 To 30A,Midget,1
Fuse Block,0 To 30A,Midget,1

#938220-1 | Pkg Qty: 1

$7.94 pkg | $7.94 ea
Item Number 938220-1
Scanner Description Fuse Block,0 To 30A,Midget,1
Inventory Status Drop Ship Item
Weight 0.5 lb
Brand BUSSMANN

Technical Specifications

AC Voltage Rating
600 VAC
Fuse Length
1-1/2 in.
Amp Range of Fuse Block or Holder
0 to 30 A
Fuse Type
Midget
Amps AC
30
Fuse UL Class
Midget
Blown Fuse Indicator
No
Height
1.3 in.
Body Material
Thermoplastic
Indicating / Nonindicating
Nonindicating
Brand
BUSSMANN
Length
3 in.
Color Family
Black
Mounting Style
Bolt-Down; DIN Rail
DC Voltage Rating
300 VDC
Number of Poles
1
Depth
1.3 in.
Pack Quantity
1
For Fuse Series
AGU, BAF, BAN, BBS, FNA, FNM, FNQ, KTK, KLM
Rejection / Nonrejection
Nonrejection
For Fuse Size
1-1/2 in. L x 13/32 in. dia
Series
BMM
For Use With
BAF, KTK, KLM, FNM, FNQ Fuses
Standards
CE, CSA Certified, REACH, RoHS, UL Listed
Fuse Block Design
Open
Voltage Rating
600 VAC/300 VDC
Fuse Block or Fuse Holder Type
Fuse Block
Width
0.8 in.
Fuse Block or Holder AC Voltage Rating
600 VAC
Wire Range
18 to 10 AWG
Fuse Block or Holder DC Voltage Rating
300 VDC
Wire Size
18 to 10 AWG
Fuse Dimensions
3 in.L x 1-1/2 in.H x 51/64 in.W

Product Description

These fuse blocks are compatible with midget fuses sized at 10mm x 38mm (13/32" x 1-1/2") and rated for up to 30A, 600VAC. They work with the midget fuses to supplement the primary branch-circuit fuse or breaker and provide backup overcurrent protection for lighting, solenoid, motor, and transformer circuits.

UL Class and midget fuse blocks accept fuses sized and rated according to UL Class or midget specifications. They have an open top for access to fuses, clips or studs for securing fuses within the block, and terminals for connecting to the circuit. These fuse blocks are either bolted down or mounted on a DIN rail to hold them in place. They're commonly paired with fuse box covers to enclose the fuses and prevent accidental contact. They are nonindicating, so there's no visual signal when a fuse is blown.
