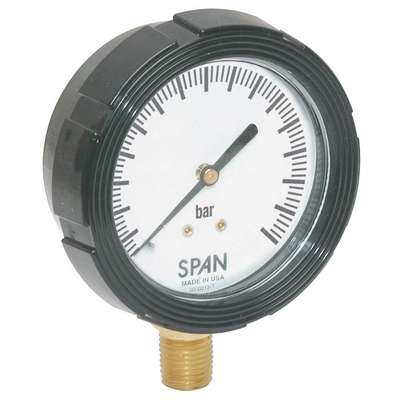

Industrial Pressure Gauge: 0 to 16 bar, 2 1/2 in Dial, Liquid-Filled, 1/4 in NPT Male, Bottom

Name: Industrial Pressure Gauge: 0 to 16 bar, 2 1/2 in Dial, Liquid-Filled, 1/4 in NPT Male, Bottom
Brand: SPAN
SKU: 9382200
Price: 54.85 USD
Availability: InStock

Hover over image to magnify

#938220 | Pkg Qty: 1

$54.85 pkg | $54.85 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Bezel Material

Zytel Nylon

Gauge Sensor Material

Phosphor Bronze

Brand

SPAN

Gauge Socket Material

Brass

Calibration Certificate Included

Hazardous Location Rating

Not Rated

Gauge Accuracy

±1.0%

Item

Industrial Pressure Gauge

Gauge Application

Fire Monitoring, Hydraulics, Marine, Military, Transportation, Waste Water or Slurry, Water Purification or Irrigation

Liquid Filled

Yes

Gauge Case Color

Black

Mfr. Part Number

LFS-210-16 BAR-G

Gauge Case Material

Zytel Nylon

Mounting Type

Stem-Mount

Gauge Connection Location

Bottom

Non-Sparking

Gauge Connection Size

1/4 in.

Operating Temperature Range

-40 deg. F to 150 deg. F

Gauge Connection Type

MNPT

Package Quantity

Gauge Filled With

Glycerin

Pressure Range

0 to 16

Gauge Lens Material

Acrylic

Series

LFS-210

Gauge Nominal Dial Size

2-1/2 in.

Shipping Weight

.87 lb.

Gauge Panel Mountable

Vibration Resistance

Liquid-Filled

Gauge Primary Range Units

bar

General

Accuracy Grade

ASME B40.100 Grade 1A

Movement Type

Swiss

Accuracy Scale

Full Scale

Nominal Dial Size

2 1/2 in

Bezel Mounting Type

Removable

Panel-Mountable

Blowout Safety Back

Pointer Material

Aluminum

Case Construction

Corrosion Resistant

Pressure Gauge Type

Industrial Pressure Gauge

Case Depth

1.41 in

Pressure Range Type

Pressure

Case Diameter

2.8 in

Pressure and Vacuum Gauge Type

Pressure Gauge

Cleaned for Oxygen Service

Primary Pressure Range

0 to 16

Dial Face Material

Aluminum

Primary Scale Minor Graduations

0.2

Dry Dampening Feature

None

Primary Scale Numeric Increments

Field Fillable

Primary Scale Units

bar

Freeze Resistant Movement

Process Connection

1/4 in NPT Male

Gauge Accuracy Grade

Grade 1A - Industrial

Process Connection Gender

Male

Gauge Case Liquid

Glycerin

Process Connection Location

Bottom

Gauge Wetted Parts

Brass / Bronze

Process Connection Size

1/4 in

IP/NEMA Rating

IP65, NEMA 4X

Process Connection Type

NPT

Includes Calibration Certificate

Removable Bezel

Yes

Includes Mounting Hardware

Scale Type

Single

Includes Vent Plug

Sensor Material

Phosphor Bronze

Lens Material - Gauge

Plastic

Sensor Type

Bourdon Tube

Liquid-Filled Case

Yes

Standards

ANSI/ASME

Movement Material

Copper Alloy

Product Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material Zytel Nylon, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP65, NEMA 4X, Primary Pressure Range 0 to 16, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
