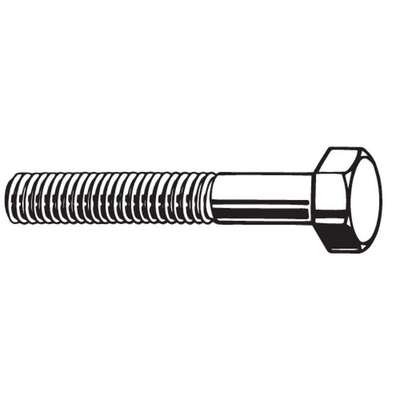

Hex Head Cap Screw: Steel, Class 8.8, Zinc Plated, M8-1.25 Thread Size, Coarse, Metric, Hex, 100 PK
Hover over image to magnify
#938213-7 | Pkg Qty: 100
$60.72 pkg
| $0.61 ea
Item Number | 938213-7 |
Scanner Description | Hxhdcpscrw,Steel,Zncplt,75mm, |
Inventory Status | Drop Ship Item |
Weight | 6.4 lb |
Technical Specifications
Basic Material
Steel
Material
Steel
Cap Screw Type
Hex Head Cap Screw
Material Grade/Class
Class 8.8
Diameter
M8
Maximum Temperature
302 deg. F
Drive
Hex
Meets/Exceeds
DIN 933
Fastener Finish
Zinc Plated
Minimum Temperature
-58 deg. F
Fastener Length
75 mm
Minimum Thread Length
75 mm
Fastener Material Grade/Class
Class 8.8
Overall Length
75 mm
Fastener Thread Direction
Right Hand
Pack Quantity
100
Fastener Thread Style
Fully Threaded
Proof Load
580 N/sq mm
Fastener Thread Type
Metric Coarse
Screw Grade/Class
Class 8.8
Finish
Zinc Plated
Standards
DIN 933
Grade
8.8
System of Measurement
Metric
Head Height
5.3 mm
Tensile Strength
116000 psi
Head Style
Hex
Thread Direction
Right Hand
Head Width
13 mm
Thread Length
75 mm
Industry Designation
HHCS
Thread Size
M8-1.25
Item
Hex Head Cap Screw
Thread Type
Coarse/ USS/ UNC
Length
75 mm
Type
Hex Head Cap Screw
Product Description
Hex Head Cap Screws feature hexagon-shaped heads for socket or wrench tightening. Class 8.8 steel cap screws are quenched and tempered. They are hard, yet malleable, allowing them to withstand shear force. Class 8.8 steel cap screws are comparable to Grade 5 steel cap screws.
Item Barcode
Name | Item | Description | |
---|---|---|---|
![]() |
Grainger Dropship | 38CK57 | |
![]() |
UNSPSC CODES | 31161501 | |
![]() |
VMRS (ATA) CODES | 053-006-009 |
