#938195-8 | Pkg Qty: 1
$47.68 pkg
| $47.68 ea
Technical Specifications
Key Specifications
Brand
OSG
Spiral Direction
Neutral
Cutting Direction
Right Hand
Square Size
11 mm
Finish
Bright
Subgroup | Tap
Spiral Point
Item
Spiral Point Tap
Tap Chamfer
Plug
List Number
122
Tap Dimension Type
Metric
Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Mfr. Part Number
15509
Tap Material
High Speed Steel
Number of Flutes
3
Tap Size
M14
Number of Pieces
1
Tap Style
Spiral Point
Overall Length
88 mm
Tap Thread Size
M14x2.00
Pack Quantity
1
Tap Thread Type
Metric Coarse
Pitch
2 mm
Thread Direction
Right Hand
Series
122
Thread Length
30 mm
Shank Diameter
10.50mm
Thread Type
Metric Coarse
Shank Length
40 mm
General
55% Thread Drill Size
12.50 mm
Shank Dia.
10.50 mm
65% Thread Drill Size
31/64 in
Shank Type - Machining
Straight
75% Thread Drill Size
12.00 mm
Tap Grouping
Individual
Class of Fit
JIS 2
Tap Length Standard
JIS
Coolant Fed
Non-Coolant Through
Tap Shank Standard
JIS
Extended Neck
Yes
Thread Limit / Class of Fit
JIS 2
Measurement System
Metric
Thread Pitch
2.00 mm
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Standard
Metric Coarse
Secondary Material Application ISO Code
K, N, P
Product Description
The bright finish on these taps provides a smooth, polished surface. Taps that meet JIS standards have a shorter overall length than DIN and DIN/ANSI taps and measure their shank diameter in millimeters.
Item Barcode

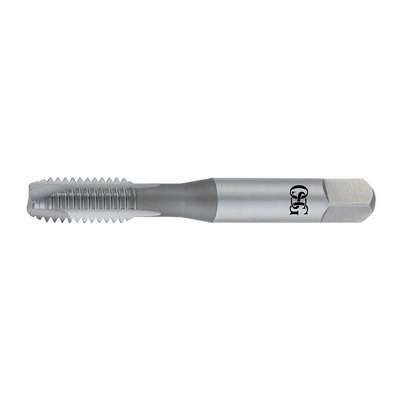

Spiral Point Tap,M14X2,Hss
