LEESON

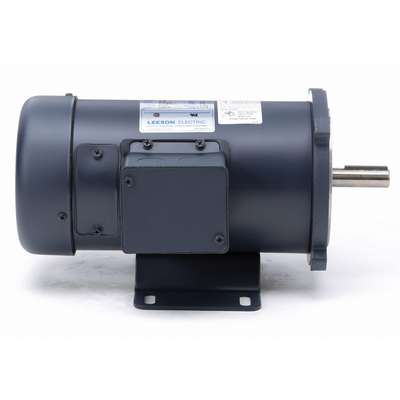

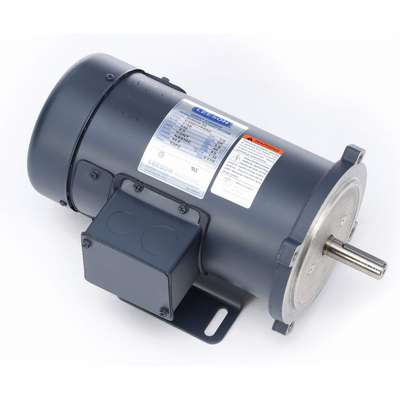

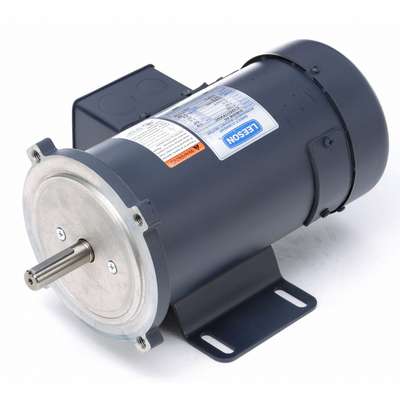

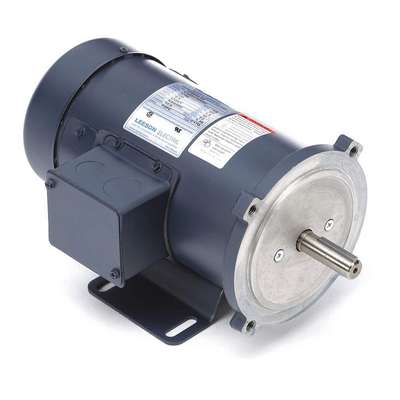

Leeson DC Permanent Magnet Motor: 1/2 HP, 1,750 Nameplate RPM, 56C Frame, Face/Base Mounting

Hover over image to magnify
Dc Motor,1/2 Hp,1750 Rpm,180V,
PI_Asset_1981450
PI_Asset_1987890
PI_Asset_1990874
Dc Motor,1/2 Hp,1750 Rpm,180V,
PI_Asset_1981450
PI_Asset_1987890
PI_Asset_1990874

#938140-4 | Pkg Qty: 1

$704.70 pkg | $704.70 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearings
Ball
Motor Design
Permanent Magnet DC
Brand
LEESON
Nameplate RPM
1750
Brush Type
Carbon
Overall Length
11-13/16 in.
Duty Cycle
Continuous
Pack Quantity
1
Frame
56C
Rotation
CW/CCW
Full Load Amps
2.5 A
Shaft Length
1-7/8 in.
Length Less Shaft
9-7/8 in.
Shipping Weight
25.2 lb.
Mfr. Part Number
98008
Voltage
180 VDC
General
Body Dia.
4 7/8 in
Motor Shaft Design
Keyed
Features
Removable Base, Rugged Die Cast Endshields with Steel Bearing Inserts
Motor Shaft Rotation
CW/CCW
Full Load Torque
18 in-lb
Motor Thermal Protection
None
HP
1/2
RPM Group
1701-1800
Ins. Class
F
RPM Range
1,701-1,800
Max. Ambient Temp.
40 °C
Removable Base
Yes
Motor Application
General Application
Shaft Dia.
5/8 in
Motor Bearings
Ball
Standards
CSA (LR2025), UL (E49747)
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Stud Quantity
4
Motor Mounting Type
Face/Base
Voltage Compatibility
180V DC
Motor Service Factor
1

Product Description

NEMA frame general purpose DC motors have standard dimensions with a specific NEMA designation that allows drop-in replacement of motors from multiple suppliers with no modifications required to existing installations. They are designed for mechanical loads, air moving, and for hard-to-start applications such as conveyors, belt-driven equipment, machine tools, and reciprocating pumps.

Item Barcode
9381404
Dc Motor,1/2 Hp,1750 Rpm,180V,
 NameItemDescription
Grainger DropshipGrainger Dropship48ZG64
UNSPSC CODESUNSPSC CODES26101208
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
