CLE-LINE

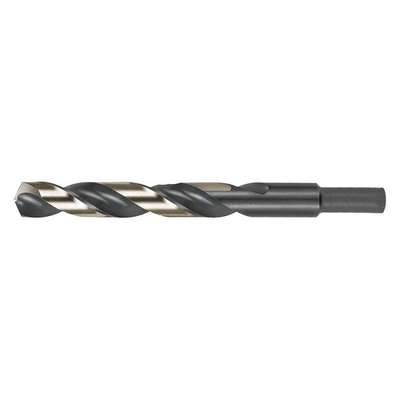

Reduced Shank Drill Bit, 1/2 in, 135 °, High Speed Steel, Black Oxide

Hover over image to magnify
Reduced Shank Drill,1/2",Hss
Reduced Shank Drill,1/2",Hss

#938101-5 | Pkg Qty: 1

$15.30 pkg | $15.30 ea

Technical Specifications

Key Specifications
Brand
CLE-LINE
Item
Reduced Shank Drill Bit
Coolant Through
Non-Coolant Through
Maximum Drilling Depth
2 in.
Cutting Direction
Right Hand
Mfr. Part Number
C18121
Decimal Equivalent
1/2
Number of Flutes
2
Depth x Diameter Ratio
4xD
Overall Length
6 in.
Drill Bit Dimension Type
Fractional Inch
Pack Quantity
1
Drill Bit Finish
Black/Gold
Point Type
Split Point
Drill Bit Material
High Speed Steel
Series
1879
Drill Bit Point Angle
135 deg.
Shank Diameter
3/8 in.
Drill Bit Size
1/2 in.
Shank Length
1 in.
Drill Point Length
0.1036 in.
Shank Type
Reduced
Flute Length
3-1/8 in.
Shipping Weight
.21 lb.
Flute Type
Spiral
Spiral Direction
Right Hand
Grade
Heavy Duty
Standards
ANSI
Helix Angle
28 deg.
General
Application
Stainless Steel, Tool Steel, Alloy Steel, Titanium, Cast Iron
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Depth:Dia. Ratio
4xD
Primary Material Application ISO Code
K, P
Drill Bit Grouping
Individual
Shank Dia.
3/8 in
Drill Bit Point Type
Split Point
Shank Type - Machining
Straight
Drill Diameter Tolerance
+0.0000 in /-0.0012 in
Silver & Deming Drill
Yes
Finish - Machining
Black Oxide

Product Description

These reduced-shank drill bits have a 3/8" shank and a drill diameter that is greater than 3/8". They can create larger holes than standard drill bits that have a 3/8" shank.

Item Barcode
9381015
Reduced Shank Drill,1/2",Hss
  Name Item Description
Grainger Dropship Grainger Dropship 435F99
UNSPSC CODES UNSPSC CODES 23241634
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009

For more product information by email, click here
