New

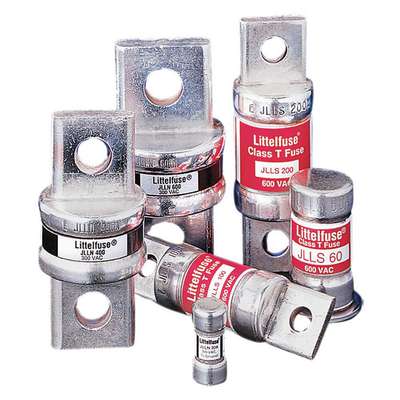

Fuse, Fast Acting, Class T, JLLS Series, 250 A

Hover over image to magnify
Fuse,Class T,250A,Jlls Series
Fuse,Class T,250A,Jlls Series

#938101-2 | Pkg Qty: 1

$162.85 pkg | $162.85 ea
Item Number 938101-2
Scanner Description Fuse,Class T,250A,Jlls Series
Inventory Status Drop Ship Item
Weight 0.44 lb
Brand LITTELFUSE

Technical Specifications

AC Voltage Rating
600 VAC
Fuse Interrupt Rating
200kA at 600 VAC, 20kA at 300 VDC
Amps
250 A
Fuse Speed
Fast Acting
Body Material
Melamine
Fuse Voltage Rating
600 VAC/300 VDC
Body Style
Blade
Indicating / Nonindicating
Nonindicating
Brand
LITTELFUSE
Interrupt Rating
200kA at 600 VAC, 20kA at 300 VDC
Class
T
Length
3-5/8 in.
DC Voltage Rating
300 VDC
Pack Quantity
1
Diameter
1 in.
Rejection / Nonrejection
Nonrejection
Element
Single
Series
JLLS
Functionally Equal To
Bussmann JJS, Mersen/Ferraz Shawmut A6T
Speed
Fast Acting
Fuse Amps
250 A
Standards
CE, CSA Certified, RoHS, UL 248-15 Class T, UL Listed

Product Description

Fast-acting, nonindicating UL Class T fuses open within seconds of being exposed to overloads and short circuits. Also called fast-blow Class T fuses, they are highly sensitive to changes in current flow and don't tolerate temporary overload currents or power surges. They have no indicator for identifying a blown fuse, so they're sometimes used with an indicating fuse block or cover.

UL Class T fuses are very small fuses that require minimal installation space for protecting electrical feeders and branch circuits from overcurrent. These fuses have an interrupting rating (IR) of 200kA and are not interchangeable with any other UL fuse class. They are current-limiting to prevent electrical damage by disconnecting circuits before they're exposed to the full magnitude and duration of an overcurrent.
