LIQUIDYNAMICS INC.

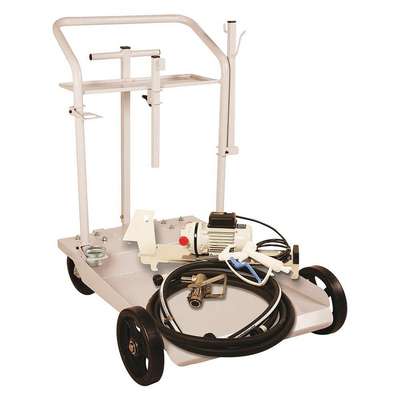

Electric Operated Drum Pump, Metered Dispensing with Manual Shut-Off, 8 GPM,115V AC, 1/10 hp Motor HP, Polypropylene

Hover over image to magnify
Electric Drum Pump,115VAC,8
Electric Drum Pump,115VAC,8

#938095-2 | Pkg Qty: 1

$2,126.68 pkg | $2,126.68 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Adapter Material
316 Stainless Steel
Motor RPM
1,750 RPM
Adapter Type
RSV
Motor Type
2 Pole
Agency Compliance
ISO
Nozzle Material
Poly, Stainless Steel
Amps
3-1/2
Nozzle Type
Manual
Bearing Type
Sealed Ball
Outlet Size
3/4" Barb
Brand
LIQUIDYNAMICS INC.
Pack Quantity
1
Bypass Valve
Internal
Phase
1
Cord Length
54 in.
Power Source
Electric
Duty
Intermittent
Pressure Range
23 psi
Duty Cycle
Intermittent
Pump Body Material
Polypropylene
Food Grade
No
Pump Design
Nutating Diaphragm
Full Load Amps
4-1/2
Seal Material
EPDM
GPM
8
Seal Type
Mechanical
Gasket Material
EPDM
Self-Priming
Yes
Horsepower
1/10
Shaft Material
Stainless Steel
Hose Length
12 ft.
Shipping Weight
170 lb.
Hose Material
Peroxide Cured EPDM
Spout Length
3 in.
Housing Material
Polypropylene
Spout Material
316 Stainless Steel
Hz
60
Suction Lift
6 ft.
Inlet
3/4"
Suction Tube Length
48 in.
Inlet Size
3/4"
Transfer Pump Application
Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Item
Electric Operated Drum Pump
Variable Speed
No
Metered
Yes
Voltage
115 VAC
Mfr. Part Number
DT15H12XMPC8RSV
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Mfr. Warranty Length
20 yr. Pump, 1 yr. Dispensing System
pH Range
5.0 to 10
Motor Enclosure
IP55
General
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
Includes Suction Tube
Yes
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Max. Flow Rate
8 gpm
Diesel Exhaust Fluid Compatible
Yes
Max. Fluid Temp.
104 Degrees F
Discharge Connection Type
Hose Barb
Max. Head - Pumps
48 ft
Discharge Tube Outlet ID
3/4 in
Max. Head Pressure
23 psi
Discharge Tube Outlet OD
1 in
Max. Oil Flow
8 gpm
Explosion Proof
No
Max. Outlet Pressure
23 psi
Features
Dispenses 9 gpm
Max. Viscosity
10 cps
For Container Size
55 gal, 275 gal, 330 gal
Min. Fluid Temp.
17 Degrees F
For Container Type
Drum, Tote
Noise Level
70 db
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Nominal Voltage
110V AC
For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Frequency (Hz)
60
Nozzle Operation
Manual
Height Above Container
4 in
Number of Phases
1
Hose Cover Material
Thermal Plastic
Pump Connection OD
1 in
Hose Inside Dia.
3/4 in
Pump Connection Type
Hose Barb
Hose Outside Dia.
1 in
Pump Package Type
Metered Dispensing with Manual Shut-Off
Hose Tube Material
EPDM
Rated Voltage
115V AC
Housing Material - Pumps
Polypropylene
Runs Dry
Yes
Includes
Coupler, Drip Cup, Four-Wheel Heavy Duty Drum Cart, Hose, Nozzle, Nozzle Hanger
Spout Connection Type
Integral to Nozzle
Includes Bung Adapter
No
Spout Discharge Size
3/4 in
Includes Discharge Hose
Yes
Suction Tube ID
3/4 in
Includes Nozzle
Yes
Suction Tube Material
EPDM
Includes Spout
Yes
Suction Tube OD
1 in

Product Description

Diesel exhaust fluid (DEF) electric pump carts combine a motor-driven pump and a wheeled frame for mobile dispensing and transferring of large volumes of DEF. These pump carts are used specifically with DEF to maintain purity when filling the reservoir of a diesel engine's Selective Catalytic Reduction (SCR) system. They are certified to ISO standards that regulate the handling, transportation, and storage of DEF. These carts are commonly used for draining DEF from one container and transferring it to another container. Mini-transfer carts transport the pump to a stationary container. Drum carts have space for carrying drums between locations.
