OSG

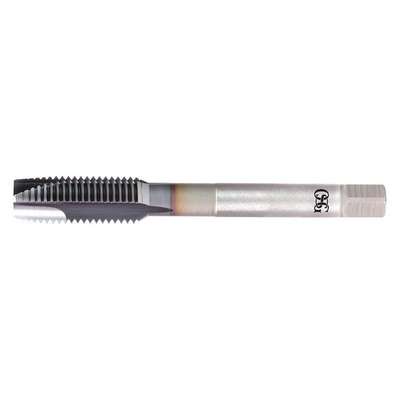

Spiral Point Tap, Thread Size M11x1.5, Metric Coarse, Overall Length 100.00 mm, VC-10, TiCN

Hover over image to magnify
Spiral Point Tap,M11x1.5,Vc-10
Spiral Point Tap,M11x1.5,Vc-10

#938068-2 | Pkg Qty: 1

$53.43 pkg | $53.43 ea

Technical Specifications

Key Specifications
Brand
OSG
Spiral Direction
Neutral
Cutting Direction
Right
Square Size
6.15 mm
Item
Spiral Point Tap
Subgroup | Tap
Spiral Point
List Number
16510
Tap Chamfer
Modified Bottoming, Semi-Bottoming
Mfr. Part Number
1651005608
Tap Dimension Type
Metric
Number of Flutes
3
Tap Finish
TiCN
Number of Pieces
1
Tap Material
VC-10
Overall Length
100 mm
Tap Style
Spiral Point
Package Quantity
1
Tap Thread Size
M11x1.50
Primary Material Application
Hardened Steel, Stainless Steel, Steel
Tap Thread Type
Metric Coarse
Series
16510
Thread Direction
Right Hand
Shank Diameter
8.20 mm
Thread Length
18 mm
Shank Length
71 mm
Thread Type
Metric
Shipping Weight
.11 lb.
General
Class of Fit
H3
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Tap Grouping
Individual
Extended Neck
Yes
Tap Length Standard
DIN
Measurement System
Metric
Tap Shank Standard
ANSI
Primary Material Application ISO Code
H, M, P
Thread Limit
D6
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Limit / Class of Fit
D6 / H3
Secondary Material Application ISO Code
K, N, P
Thread Pitch
1.50 mm
Shank Dia.
8.20 mm
Thread Standard
Metric Coarse

Product Description

These taps are designed for tapping steel and stainless steel. They have a TiCN coating that protects them from wear and is harder and more wear-resistant than a TiN coating. These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S.
