WALTER PROTOTYP

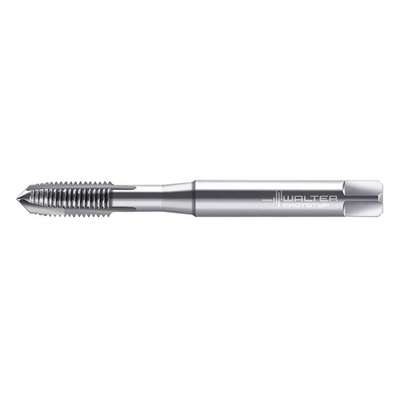

Spiral Point Tap, Thread Size M10x1.5, Metric Coarse, Overall Length 100.00 mm, High Speed Steel
Hover over image to magnify
#938067 | Pkg Qty: 1
$71.50 pkg | $71.50 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WALTER PROTOTYP
Shipping Weight
.13 lb.
Cutting Direction
Left
Spiral Direction
Neutral
Drill Bit Size
8.50 mm
Square Size
8 mm
Item
Spiral Point Tap
Subgroup | Tap
Spiral Point
List Number
P202108
Tap Chamfer
Plug
Mfr. Part Number
P202108-M10
Tap Dimension Type
Metric
Number of Flutes
3
Tap Finish
Bright (Uncoated)
Number of Pieces
1
Tap Material
High Speed Steel
Overall Length
100 mm
Tap Style
Spiral Point
Package Quantity
1
Tap Thread Size
M10x1.50
Primary Material Application
Steel
Tap Thread Type
Metric Coarse
Series
Prototex Xpert P
Thread Direction
Left Hand
Shank Diameter
10.00 mm
Thread Length
20 mm
Shank Length
61 mm
Thread Type
Metric Coarse
General
55% Thread Drill Size
8.90 mm
Secondary Material Application ISO Code
N, O
65% Thread Drill Size
11/32 in
Shank Dia.
10.00 mm
75% Thread Drill Size
8.50 mm
Shank Type - Machining
Straight
Class of Fit
6H
Tap Grouping
Individual
Coolant Fed
Non-Coolant Through
Thread Limit
D4, D5
Extended Neck
Yes
Thread Limit / Class of Fit
D4, D5 / 6H
Measurement System
Metric
Thread Pitch
1.50 mm
Primary Material Application ISO Code
P
Thread Standard
Metric Coarse
Secondary Material Application
Aluminum, Brass, Bronze, Composite, Copper
Product Description
These taps are designed for tapping steel. They come in standard sizes expressed in millimeters. The bright finish on these taps provides a smooth, polished surface.
