EATON

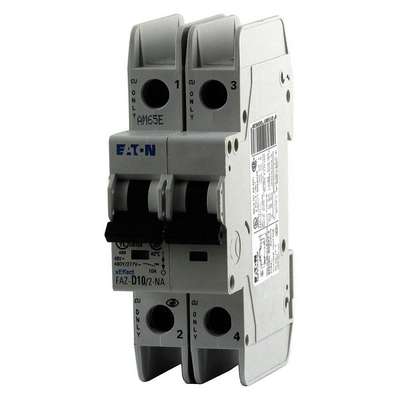

Eaton IEC Miniature Circuit Breaker, Amps 1 A, Curve Type C, AC Voltage Rating 277/480V AC, Phase 1

Hover over image to magnify
Iec Mini Circuit Breaker,1A,2P,
Iec Mini Circuit Breaker,1A,2P,

#938066 | Pkg Qty: 1

$222.23 pkg | $222.23 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
277/480VAC
Maximum Air Rating
10kA at 277/480VAC
Air @ 120 VAC
10kA
Maximum DC Voltage
48VDC
Air @ 125 VDC
10kA
Maximum Wire Size
6 AWG
Air @ 240 VAC
10kA
Mfr. Part Number
FAZ-C1/2-NA
Air @ 277 VAC
10kA
Minimum Wire Size
18 AWG
Air @ 48 VDC
10kA
Mounting
DIN Rail
Air @ 480 VAC
10kA
Mounting Type
Din Rail
Air @ 600 VAC
10kA
Number of Poles
2
Air @ 65 VDC
10kA
Package Quantity
1
Amps
1 A
Panelboard Mounting
Din Rail
Brand
EATON
Phase
1
Circuit Breaker Type
Miniature UL 489
Phase Connection
Lug
Curve Type
C
Series
FAZ-NA
DC Voltage Rating
48VDC
Shipping Weight
.55 lb.
Depth
4.13 in.
Standards
CSA Certified, IEC 60947-2, UL 489 Listed
Frame Size
40A/FAZ
Switch Type
Lever
High Amp Trip Setting
1
Terminal Connection
Screw Clamp
Instantaneous Trip
Fixed
Trip Type
Thermal Magnetic
Item
IEC Miniature Circuit Breaker
Type
DIN Rail Mount
Length
1.4 in.
Voltage
277/480VAC
Low Amp Trip Setting
1
Width
2.97 in.
General
AIR @ 120VAC
10kA
AIR @ 65VDC
10kA
AIR @ 125VDC
10kA
Application
Motor Control Circuits, Industrial Controls and Automation, Communication Equipment, Computers, Medical Equipment, Relays, UPS, HACR Equipment (Heating, Air Conditioning, Refrigeration) (Internal/External)
AIR @ 240VAC
10kA
Circuit Breaker Actuator
Toggle
AIR @ 277VAC
10kA
Circuit Breaker Mounting Style
DIN Rail
AIR @ 480VAC
10.0kA
Max. Operating Temp.
140°F
AIR @ 48VDC
10kA
Meets UL Type
UL 489
AIR @ 600VAC
10kA
Min. Operating Temp.
-4°F

Product Description

C-curve two-pole miniature circuit breakers trip instantaneously when the current load exceeds five to ten times the rating of the device. These breakers mount on standard 35mm DIN rail and are UL489 listed for use as branch circuit protection or as supplementary protection from damage caused by overcurrents. They protect two circuits at the same time and are used when protection against medium-level short circuit faults is desired, such as in control panels, lighting, and coils.
