MARATHON MOTORS

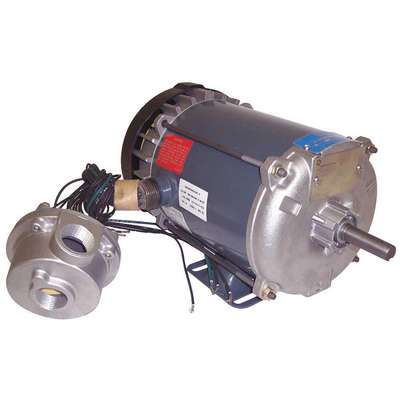

Marathon Motors Hazardous Location Motor: 1 C,D / 2 E,F,G, 3/4 HP, 1,725 Nameplate RPM, 230/460V AC

Hover over image to magnify
Motor,3/4 Hp,1725 Rpm,56,230/
Motor,3/4 Hp,1725 Rpm,56,230/

#938022 | Pkg Qty: 1

$506.12 pkg | $506.12 ea

Technical Specifications

Key Specifications
Bearings
Ball
Motor Type
3-Phase
Brand
MARATHON MOTORS
Mounting
Base
Duty
Continuous
NEMA/IEC Frame
56
Duty Cycle
Continuous
Nameplate RPM
1725
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
13-15/16 in.
Frame
56
Pack Quantity
1
Full Load Amps
3.0/1.50
Phase
Three
Hazardous Location Class
1 C,D/2 E,F,G
Rotation
CW/CCW
Hz
60/50
Service Factor
1
Insulation Class
B
Shaft Length
1-7/8 in.
Lead Length
6 in.
Shipping Weight
29.6 lb.
Length Less Shaft
12-1/16 in.
Thermal Protection
Auto
Mfr. Part Number
056T17G15551
Voltage
230/460 VAC
Motor Design
3-Phase
Warranty
2ACD1
General
Conduit Box Location
Exterior
Motor Shaft Rotation
CW/CCW
Full Load Amps @ 50Hz
3.0/1.50
Motor Thermal Protection
Auto
HP
3/4
NEMA Design
B
HP @ 50Hz
3/4
No. of Speeds
1
Includes
Conduit Box (Unmounted), Leads through 1 in NPT Nipple
Nominal Efficiency
86.5 %
Ins. Class
B
RPM @ 50Hz
1,725
Max. Ambient Temp.
40 °C
RPM Range
1,701-1,800
Motor Application
Hazardous Location
Service Factor @ 50Hz
1
Motor Bearings
Ball
Shaft Dia.
5/8 in
Motor Efficiency Group
Standard Efficient
Standards
CSA Certified (LR47504), (E12044)
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Temp. Code
T3B
Motor Frame Material
Steel
Usable @ 200V
No
Motor Mounting Position
Horizontal
Usable @ 208V
No
Motor Mounting Type
Rigid Base
Voltage @ 50Hz
230/460V AC
Motor Service Factor
1
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Shaft Design
Keyed

Product Description

Class 1 C, D/2 E, F, G three-phase hazardous location AC motors don't require starting capacitors, run capacitors, or centrifugal starting switches that can wear out and fail. They operate with a higher torque and greater efficiency than single-phase hazardous location motors of the same HP, rpm, and frame size. These motors are for use in environments where flammable gas or vapor such as ethylene, propane, or methane are present. They are also for use in areas where combustible metal dusts such as magnesium, and other combustible dusts such as carbon black, coke, charcoal, flour, starch, or grain dust are present.

Item Barcode
9380220
Motor,3/4 Hp,1725 Rpm,56,230/
  Name Item Description
Grainger Dropship Grainger Dropship 1TUE6
UNSPSC CODES UNSPSC CODES 26101311
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009
