CHICAGO-LATROBE

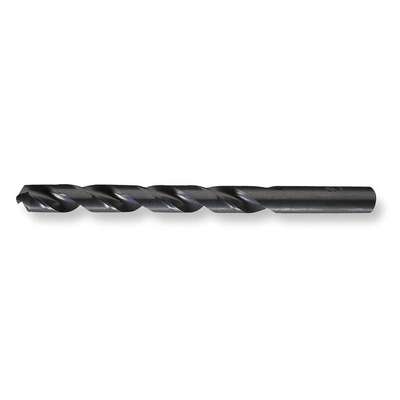

Jobber Length Drill Bit, Drill Bit Size 2.90 mm, Drill Bit Point Angle 118 °, High Speed Steel
Hover over image to magnify
#937988-2Pkg Qty: 1
$2.85 pkg | $2.85 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CHICAGO-LATROBE
Item
Jobber Length Drill Bit
Cutting Direction
Right
List Number
150
Decimal Equivalent
0.1142
Maximum Drilling Depth
7/16 in.
Dimension Type
Metric
Mfr. Part Number
47258
Drill Bit Dimension Type
Metric
Number of Flutes
2
Drill Bit Finish
Black Oxide
Number of Pieces
1
Drill Bit Material
High Speed Steel
Overall Length
61 mm
Drill Bit Point Angle
118 deg.
Package Quantity
1
Drill Bit Size
2.90 mm
Point Angle
118 deg.
Drill Point Length
0.0343 mm
Point Type
Conventional Point
Finish
Black Oxide
Series
150
Flute Length
33 mm
Shank Length
28 mm
Flute Type
Spiral
Shipping Weight
.05 lb.
Grade
General Purpose
Spiral Direction
Right Hand
Helix Angle
28
General
Application
For Carbon Steel And Cast Iron
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Metric
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Conventional Point
Shank Dia.
2.9 mm
Drill Diameter Tolerance
+0.0000 in /-0.0005 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
DIN 338
Finish - Machining
Black Oxide
Product Description
These drill bits come in standard sizes expressed in millimeters. They have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. The bits' spiral flutes evacuate chips as the bits drill into a workpiece. These bits have a straight shank that installs into a drill chuck or similar toolholder.
