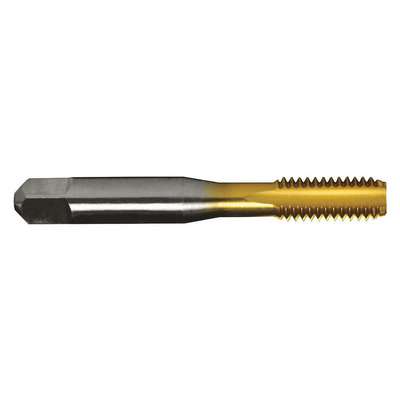

Straight Flute Tap, Thread Size M2.5x0.45, Metric Coarse, Bottom, Overall Length 46.04 mm
Hover over image to magnify
#937988 | Pkg Qty: 1
$25.19 pkg
| $25.19 ea
Technical Specifications
Key Specifications
Brand
GREENFIELD THREADING
Shank Length
1-5/16 in. in.
Cutting Direction
Right
Shipping Weight
.01 lb.
Drill Size
2.05 mm
Spiral Direction
Neutral
Helix Angle
0 deg.
Square Size
2.79 mm
Item
Straight Flute Tap
Subgroup | Tap
Straight Flute
List Number
HTGP-TN
Tap Chamfer
Bottoming
Material
High Speed Steel
Tap Dimension Type
Metric
Mfr. Part Number
328690
Tap Finish
TiN
Number of Flutes
3
Tap Material
High Speed Steel
Number of Pieces
1
Tap Style
Straight Flute (Hand)
Overall Length
46.04 mm
Tap Thread Size
M2.5x0.45
Package Quantity
1
Tap Thread Type
Metric Coarse
Primary Material Application
Cast Iron, Stainless Steel, Steel
Thread Direction
Right Hand
Series
HTGP-TN
Thread Length
12.7 mm
Shank Diameter
3.58 mm
General
65% Thread Drill Size
2.10 mm
Tap Grouping
Individual
Class of Fit
2B
Tap Length Standard
USCTI
Extended Neck
Yes
Tap Shank Standard
USCTI
Measurement System
Metric
Thread Limit
D3
Primary Material Application ISO Code
K, M, P
Thread Limit / Class of Fit
D3 / 2B
Shank Dia.
3.58 mm
Thread Pitch
0.45mm
Shank Type - Machining
Straight
Thread Standard
Metric Coarse
Standards
USCTI Table 302A
Product Description
The TiN coating on these taps protects them from wear and allows them to be used at higher speeds than taps with a bright finish. Non-coolant-through taps do not have coolant holes, so a separate hose is required to bring coolant to the cutting area if it is needed.
