WINTERS

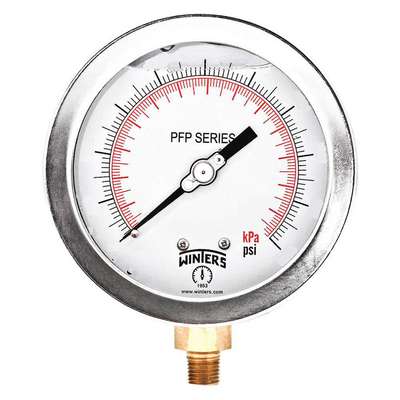

Industrial Pressure Gauge: 0 to 60 psi, Liquid-Filled, Reflective White, 4 in Dial, Bottom

Hover over image to magnify
Gauge,4" Dial Size,Mnpt
Gauge,4" Dial Size,Mnpt

#937959-3 | Pkg Qty: 1

$182.77 pkg | $182.77 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bezel Material
304 Stainless Steel
Gauge Sensor Material
Phosphor Bronze
Brand
WINTERS
Gauge Socket Material
Brass OT58
Calibration Certificate Included
No
Hazardous Location Rating
Not Rated
Gauge Accuracy
±1.0 %
Item
Industrial Pressure Gauge
Gauge Application
Compressors, Hydraulics, Oil and Gas Industry, Outdoor, Process Conditions, Process Industries, Pumps, Severe Ambient Conditions, Vibration Measurement
Liquid Filled
Yes
Gauge Case Color
Silver
Mfr. Part Number
PFP603WBW
Gauge Case Material
304 Stainless Steel
Mfr. Warranty Length
5 yr.
Gauge Connection Location
Bottom
Mounting Type
Stem-Mount
Gauge Connection Size
1/4 in.
Non-Sparking
No
Gauge Connection Type
MNPT
Operating Temperature Range
-4 deg. F to 150 deg. F
Gauge Filled With
Glycerin
Package Quantity
1
Gauge Lens Material
Polycarbonate
Pressure Range
0 to 60
Gauge Nominal Dial Size
4 in.
Series
PFP
Gauge Panel Mountable
No
Shipping Weight
1.8 lb.
Gauge Primary Range Units
psi
Vibration Resistance
Liquid-Filled
General
Accuracy Grade
ASME B40.100 Grade 1A
Movement Material
Brass OT59
Accuracy Scale
Full Scale
Nominal Dial Size
4 in
Bezel Gasket Material
Buna-N
Over-Pressure Limit
25%
Bezel Mounting Type
Bayonet Ring
Panel-Mountable
No
Blowout Safety Back
Yes
Pointer Characteristics
Micrometer Adjustable
Case Construction
Welded Joint
Pointer Material
Aluminum
Case Depth
1.95 in
Pressure Gauge Type
Industrial Pressure Gauge
Case Diameter
3.964 in
Pressure Range Type
Pressure
Cleaned for Oxygen Service
No
Pressure and Vacuum Gauge Type
Pressure Gauge
Compatible Process Media
Oil
Primary Pressure Range
0 to 60
Dial Face Material
Aluminum
Primary Scale Units
psi
Dry Dampening Feature
None
Process Connection
1/4 in NPT Male
Field Fillable
No
Process Connection Gender
Male
Freeze Resistant Movement
No
Process Connection Location
Bottom
Gauge Accuracy Grade
Grade 1A - Industrial
Process Connection Size
1/4 in
Gauge Case Liquid
Glycerin
Process Connection Type
NPT
Gauge Wetted Parts
Brass / Bronze
Removable Bezel
Yes
IP/NEMA Rating
IP66, NEMA 4X
Scale Type
Dual
Includes Calibration Certificate
No
Secondary Pressure Range
0 to 410
Includes Mounting Hardware
No
Secondary Scale Units
kPa
Includes Vent Plug
No
Sensor Material
Phosphor Bronze
Lens Material - Gauge
Plastic
Sensor Type
Bourdon Tube
Liquid-Filled Case
Yes
Standards
ANSI/ASME, ASME, CRN, EN60529-1 (IEC529-1)
Manufacturer Warranty Length
5 yr

Product Description

Industrial Pressure Gauge, Nominal Dial Size 4, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4, Field Fillable No, Process Connection Location Bottom, Case Color Gray, IP/NEMA Rating IP66, NEMA 4X, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color Reflective White
