AIR HANDLER

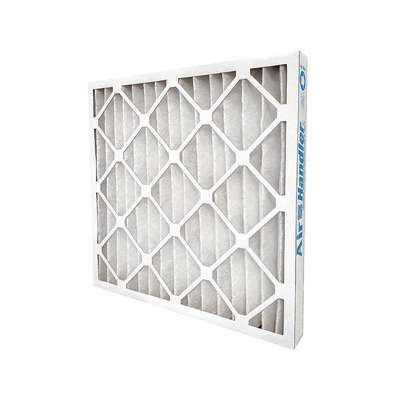

Air Handler General Use Pleated Air Filter, 18x20x2, MERV 10, High Capacity, Synthetic, Beverage Board

Hover over image to magnify
Pleated Air Filter,18x20x2,
Pleated Air Filter,18x20x2,
Air Handler General Use Pleated Air Filter, 18x20x2, MERV 10, High Capacity, Synthetic, Beverage Board Video

#937923-5 | Pkg Qty: 12

$150.48 pkg | $12.54 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Actual Depth
1-3/4 in.
Item
Pleated Air Filter
Actual Height
17-1/2 in.
MERV
10
Actual Width
19-1/2 in.
Maximum Temperature
180 deg. F
Agency Compliance
UL 900 Classified
Maximum Velocity
500 fpm
Air Flow @ 300 FPM
750 cfm
Media Type
Synthetic
Air Flow @ 500 FPM
1,250 cfm
Mfr. Part Number
4YUX9
Brand
AIR HANDLER
Nominal Depth
2 in.
Capacity
High Capacity
Nominal Height
18 in.
Filter Efficiency
50%
Nominal Width
20 in.
Filters Out
Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets
Package Quantity
12
Frame Color
White
Removes Particles Down To
1.0 to 3.0 microns
Frame Included
Yes
Shipping Weight
9.72 lb.
Frame Material
Beverage Board
General
Actual Filter Size
17-1/2 in x 19-1/2 in x 1-3/4 in
Max. Temp.
180 Degrees F
Air Filter Capacity
High Capacity
Max. Velocity
500 fpm
Common Applications
General Use
Media Material
Synthetic
Filter Efficiency - Air Filters
0.5
Nominal Filter Size
18x20x2
Final Recommended Resistance
1.0 in in wc
Performance Rating
MERV 10
Frame or Header Material
Beverage Board
Pleats per Linear Foot
20
Initial Resistance @ 300 fpm
0.20 in wc
Style - Air Filters
Panel
Initial Resistance @ 500 fpm
0.33 in wc

Product Description

MERV 10 general purpose pleated air filters provide between 75% and 80% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust). They also provide between 35% and 50% efficiency for filtering particles between 1 and 3 microns in size (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets). They capture contaminants more efficiently than MERV 8 pleated air filters.

Pleated air filters capture airborne contaminants more effectively than non-pleated air filters because the pleated filter media provides more surface area for trapping contaminants than non-pleated media. These filters are commonly installed in HVAC systems in food and beverage, healthcare, hospitality, education, and industrial facilities to remove contaminants from the air stream and improve the quality of the air. They also prevent the contaminants from building up in the equipment and causing damage to it. The filters are designed to be discarded when they are spent. They typically have a MERV (minimum efficiency reporting value) rating of between 7 and 13. A filter's MERV rating measures how efficiently it removes contaminants from the air stream based on the size of the particles it can effectively capture. The higher the MERV rating is, the more effectively the filter traps small particles.
