CHICAGO-LATROBE

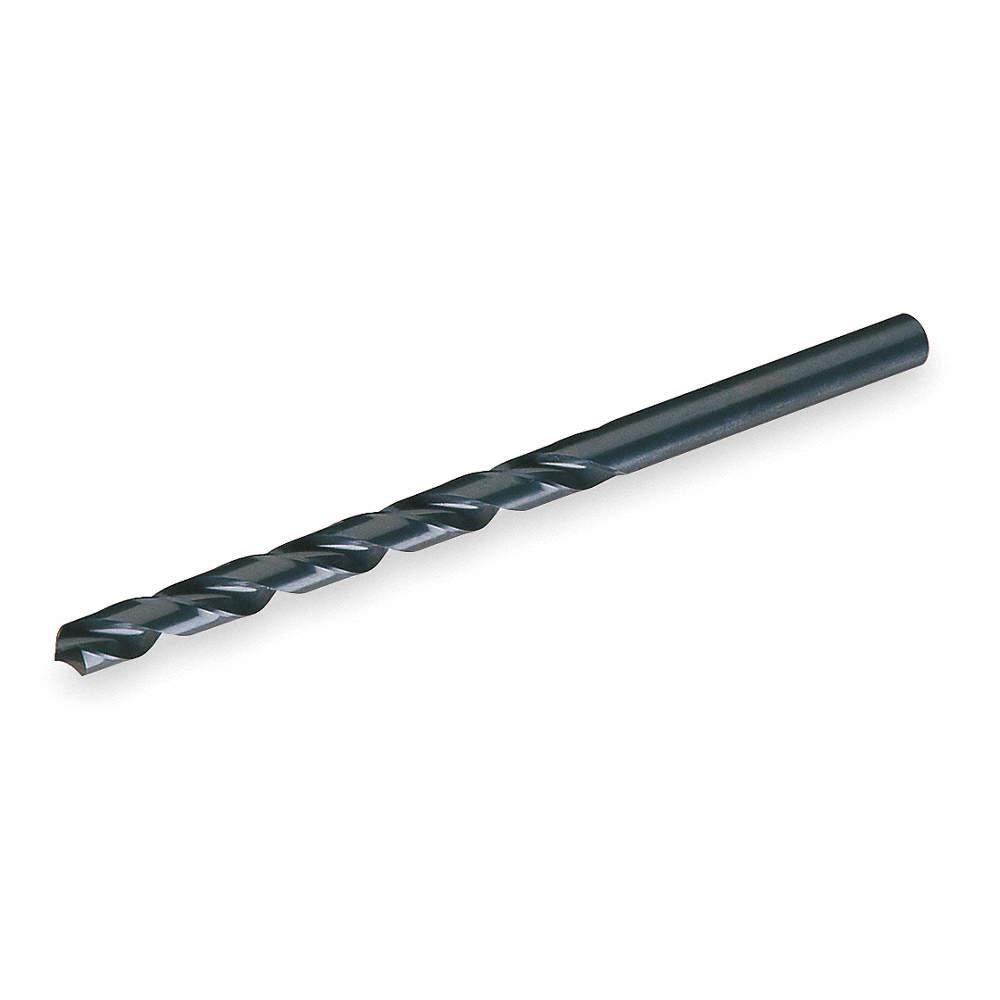

Taper Length Drill Bit, Drill Bit Size 11/16", Drill Bit Point Angle 118 °, Radial Point

Hover over image to magnify
Taper Length Drill,11/16",Hss
Taper Length Drill,11/16",Hss
Taper Length Drill Bit, Drill Bit Size 11/16", Drill Bit Point Angle 118 °, Radial Point Video
Taper Length Drill Bit, Drill Bit Size 11/16", Drill Bit Point Angle 118 °, Radial Point Video

#937870-9 | Pkg Qty: 1

$66.99 pkg | $66.99 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CHICAGO-LATROBE
Helix Angle
28 deg.
Coolant Through
No
Item
Taper Length Drill Bit
Cutting Direction
Right
List Number
120
Decimal Equivalent
11/16
Maximum Drilling Depth
2-3/4 in.
Depth x Diameter Ratio
3-7/8 in.
Mfr. Part Number
49744
Dimension Type
Fractional Inch
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Finish
Black Oxide
Overall Length
9-1/4 in.
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
118 deg.
Point Type
Conventional Point
Drill Bit Size
11/16 in.
Series
120
Drill Point Length
0.2065 in.
Shank Length
3-7/8 in.
Finish
Black Oxide
Shank Type
Straight
Flute Length
5-3/8 in.
Shipping Weight
.73 lb.
Flute Type
Spiral
Spiral Direction
Right Hand
Grade
General Purpose
General
Application
For Deeper Drilling On Alloy And Carbon Steel And Cast Iron
Finish - Machining
Black Oxide
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Depth:Dia. Ratio
4xD
Material Grade - Machining
General Purpose
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Radial Point
Primary Material Application ISO Code
K, P
Drill Diameter Tolerance
+0.0000 in /-0.0012 in
Shank Dia.
11/16 in
Drill Length Class
Taper Length
Shank Type - Machining
Straight

Product Description

These drill bits come in standard sizes expressed in fractional inches. The bits have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. High-speed steel drill bits provide more flexibility and absorb more shock and vibration than cobalt and carbide drill bits, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece.
