HAMILTON

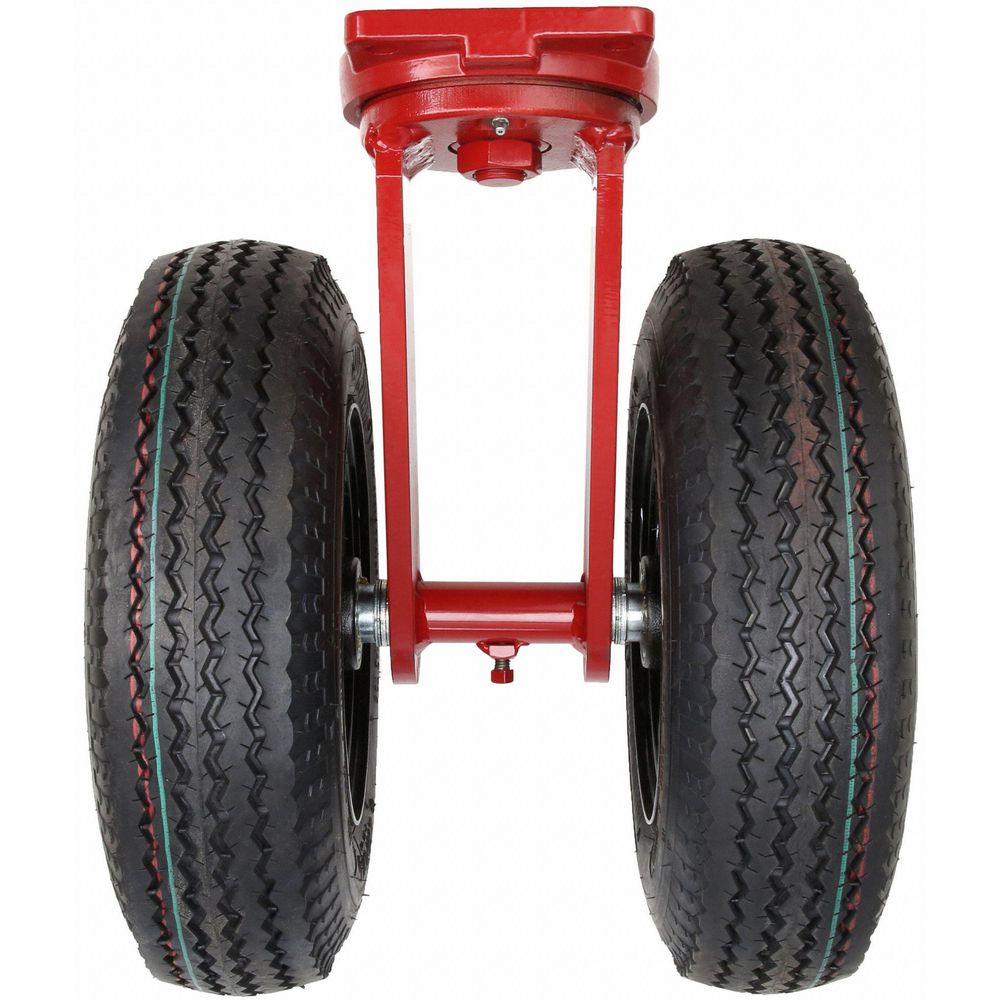

Hamilton Medium Duty, Swivel Easy-Turn Plate Caster with Pneumatic Wheels; 2440 lb. Load Rating, 16 in. Wheel Dia.

Hover over image to magnify
Easy-Turn Plate Caster,Swivel,
PI_Asset_1982891
PI_Asset_1987357
PI_Asset_1988279
Easy-Turn Plate Caster,Swivel,
PI_Asset_1982891
PI_Asset_1987357
PI_Asset_1988279

#937850-4 | Pkg Qty: 1

$948.70 pkg | $948.70 ea
Plate Caster Sub-Type : Swivel

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
HAMILTON
Load Rating
2440 lb.
Caster Brake Included
No
Mfr. Part Number
S-72166-PR
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
1/2 in.
Caster Load Rating Range
Medium Duty
Mounting Height
18-3/4 in.
Caster Plate Hole Pattern
D
Non-Marking
No
Caster Plate Size
6-1/8 in. x 7-1/2 in.
Number of Mounting Holes
4
Caster Raceway
Single Ball
Number of Wheels
2
Caster Wheel Bearings
Tapered Roller
Outside Bolt Hole Spacing
4-1/8 in. x 6-1/8 in.
Caster Wheel/Tread Material
Rubber
Package Quantity
1
Caster/Wheel Tread
Sawtooth
Plate Caster Sub-Type
Swivel
Durometer
60 Shore A
Shipping Weight
62.75 lb.
Frame Finish
Enamel
Swivel Construction
Kingpin
Frame Material
Steel
Wheel Color
Black
Includes Thread Guards
No
Wheel Diameter
16 in.
Inside Bolt Hole Spacing
4-1/8 in. x 6-1/8 in.
Wheel Width
4-7/8 in.
Item
Easy-Turn Plate Caster with Pneumatic Wheels
Wheel/Tread Hardness Rating
Soft
General
Brake Type
No Brake Included
Mounting Plate Size
6-1/8 in x 7-1/2 in
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
6-1/8 in x 7-1/2 in (D)
Caster Mounting Type
Plate
Operating Temperature Range
-30° to 120°F
Caster Product Group
Swivel Caster
Raceway
Single Ball
Caster Temp. Range Available
Yes
Sub-Category
Swivel Caster
Hub Materials
Steel
Swivel Raceway Type
Single Ball
Hub Position
Symmetrical
Tire Rim Dia.
8 in
Hub Width
4-3/4"
Wheel Bearing Type
Tapered Roller
Load Rating Range
1000 to 2999 lb
Wheel Dia.
16 in
Mounting Bolt Dia.
1/2 in
Wheel/Tread Hardness
60 Shore A
Mounting Plate Bolt Hole Pattern
D
Wheel/Tread Material
Rubber

Product Description

Super-duty easy-turn plate casters each have two pneumatic wheels mounted on a single axle. This reduces friction between the floor and the wheels (also known as scrubbing), which allows the casters to swivel more easily than single-wheel plate casters. The casters have thick steel frames and heavy-duty bearings and can bear more weight, withstand rougher terrain, tolerate higher speeds, and absorb more shock and impact than other types of plate casters with pneumatic wheels. The casters' pneumatic wheels have air-filled tires that provide cushioning when transporting electronics and other loads that are sensitive to shock and vibration. Super-duty plate casters with pneumatic wheels are suitable for use on heavy carts, trucks, and other equipment used in indoor or outdoor towing applications over rough or uneven terrain, such as aerospace ground support, manufacturing sites, and shipping operations.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.

Item Barcode
9378504
Easy-Turn Plate Caster,Swivel,
 NameItemDescription
Grainger DropshipGrainger Dropship1VHP6
UNSPSC CODESUNSPSC CODES31162701
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
